Power chuck HSK-A100-HMC20S-105

Power chuck HSK-A100-HMC20S-105

Power chuck HSK-A100-HMC20S-105
Item no: 1021497 116

Online price:

Available in 4-6 working days.

Application
The high-performance power chuck combines high precision with high torque transmission and rigidity. Perfect for use in heavy
machining during milling, but also for drilling and fine drilling operations.

Execution
  • High clamping force thanks to special slotted design and needle bearing.
  • High rigidity for heavy machining
  • High levels of precision and concentricity 10ym at 4xD projecting length
  • Axial length adjustment of 6 mm with stop screw

Advantage
  • Various possible applications when used with reducing bushes ref. no. 1021497200-300
  • Perfect for heavy machining


Brand: BIG DAISHOWA
Tool holding device: HSK 100
Clamping diameter (Ød): 20 mm
Projecting length (L): 105 mm
Outer diameter (ØD): 50 mm
Clamp in depth (L2): 50 mm
Min./max. clamping depth (Spannbereich E1 -H): 50-73 mm
Coolant supply: Internal
Balancing quality: G 6.3 at 15,000 rpm
Construction length: Normal

Manufacturer part no.: 805106

Product Datasheet
Additional articles

Please select a button.

Required accessories
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • ATORN 1/2 inch screwdriver bit 10 mm for hexagon socket screws
  •
    ATORN 1/2 inch screwdriver bit 12 mm for hexagon socket screws
  •
    ATORN 1/2 inch screwdriver bit 14 mm for hexagon socket screws
  •
    ATORN 1/2 inch screwdriver bit 17 mm for hexagon socket screws
  •
    ATORN 1/2 inch screwdriver bit 19 mm for hexagon socket screws
  •

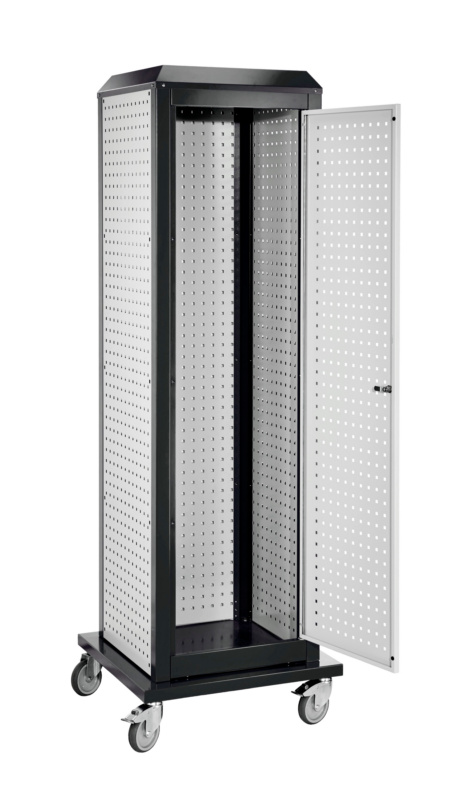

    RASTERPLAN tool tower mobile 2015x700x700mm 7035/5010
  •

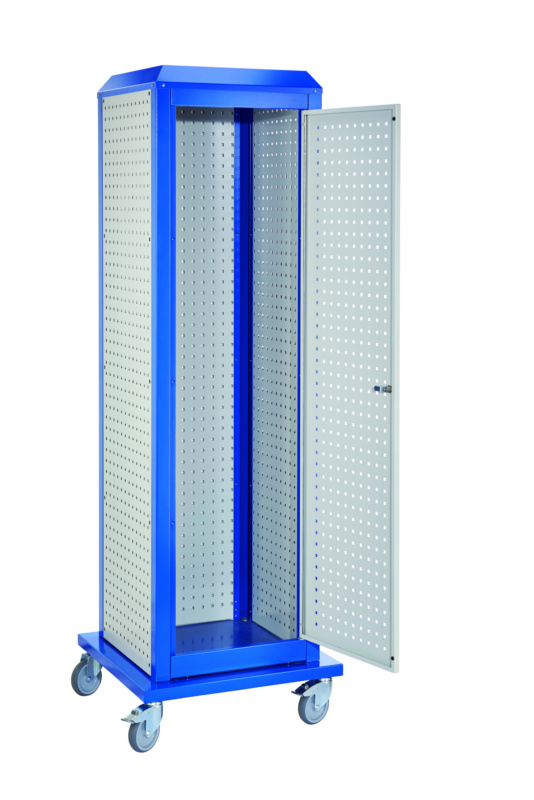

    RASTERPLAN tool tower mobile 2015x700x700mm 7035/7016
