ATORN screw tap HSSE-PM ULTRA HL C 376 50° M16 2 external coolant supply

ATORN screw tap HSSE-PM ULTRA HL C 376 50° M16 2 external coolant supply

ATORN screw tap HSSE-PM ULTRA HL C 376 50° M16 2 external coolant supply
Item no: 1014456 111

Online price:

Available for immediate delivery

Application
For manufacturing metric threads in blind holes on CNC or conventional machines in the steel, stainless steel, non-ferrous metal and cast iron material groups up to -1200 N/mm²

Advantage
  • Universal application for maximum flexibility
  • Innovative cutter geometry ensures high process reliability even in difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M16
Tolerance of screw taps (Tol.): ISO 2X (6HX)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 110 mm
Cutting material: HSSE-PM
Surface: ULTRA HL
Pitch: 2 mm
Twist angle: 50° (right)
DIN: 376
Shank diameter: 12 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 14 mm
Type: UNI MAX 45HL Speed
Coolant supply: External
Shank square: 9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 1
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 12280041

EAN no.: 4050293424751

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN MT HSSE shape C blind hole 6H M14
  •
    Through hole screw tap MF DIN 374 shape B 3xD HSS-E-TiN MF16x1.50
  •
    ATORN screw tap HSSE B 374 0° MF8 0.75 mm ISO2 D 3xD CNC M
  •
    VHM-Gewindefräser Steigung 1,25 mm M 8 l=14,4 mm
  •

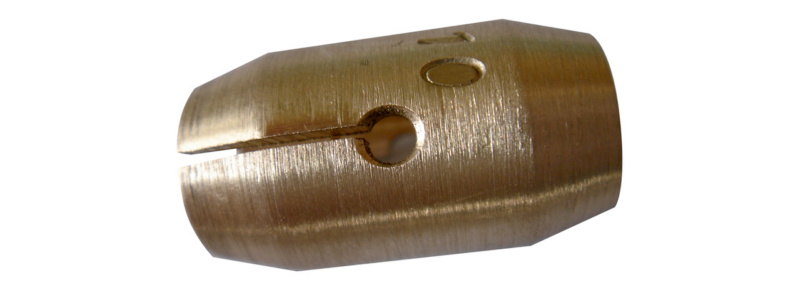

    Collet for Eromobil cat. no. 14934 101/102. 7 mm
