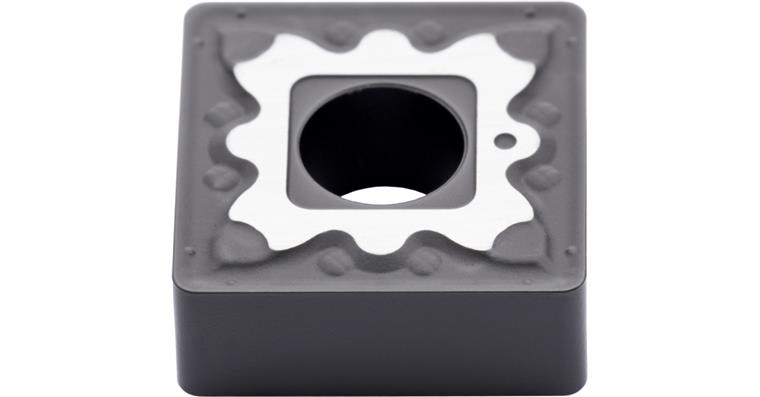

ATORN cemented carbide indexable insert SNMG 120412-MP5 ACP35T

ATORN cemented carbide indexable insert SNMG 120412-MP5 ACP35T

ATORN cemented carbide indexable insert SNMG 120412-MP5 ACP35T
Item no: 1019417 121

Online price:

Available in 6-8 working days.

Application
For longitudinal turning and facing with a wide infeed range in unfavourable cutting conditions

Advantage
  • Very tough type with low risk of breakage in unfavourable cutting conditions
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: S
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 12
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Unfavourable
Carbide type ISO: P35
Carbide type: ACP35T
ISO-Code Rotating: SNMG 120412
Material to be processed: Steel | Stainless steel
min./max. ap: 0.5-5 mm
f min./max.: 0.18-0.4 mm/U
Materials group: P (primary application) | M (secondary application)
f min.: 0,18 mm/r
max. f: 0,4 mm/r
max. ap: 5 mm
min. ap: 0,5 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MP5
Min./max. Vc in steel: 140-190 m/min
Min./max. Vc in stainless steel: 140-200 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370047

EAN no.: 4050293564600

Product Datasheet
