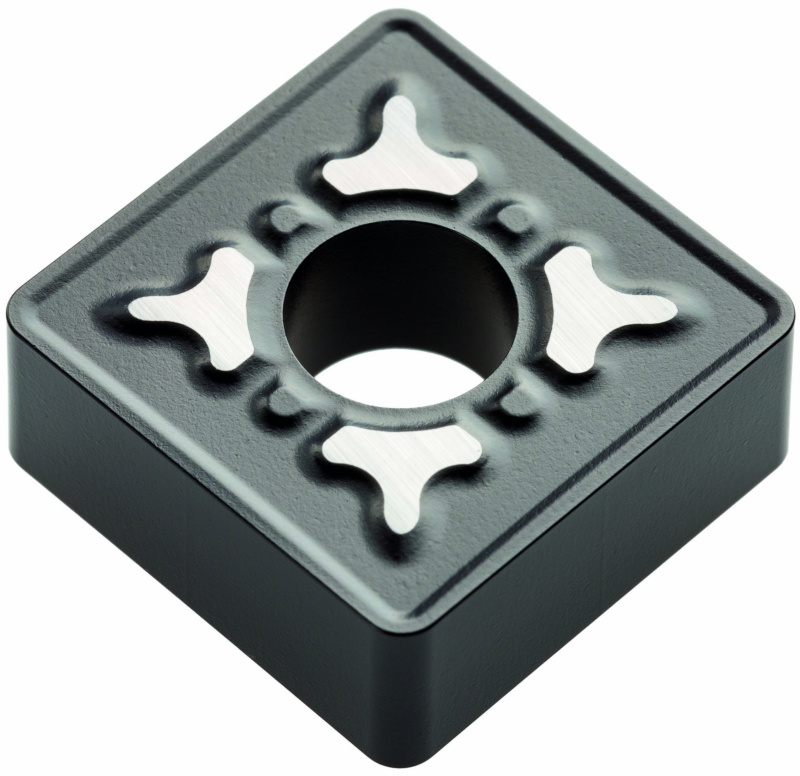

Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 19
Thickness of indexable insert ISO: 06
Corner radius of indexable insert ISO: 12
Carbide type area ISO: P
Machining conditions for indexable insert: Unfavourable
Carbide type ISO: P35
Carbide type: ACP35T
ISO-Code Rotating: CNMG 190612
Material to be processed: Steel | Stainless steel
min./max. ap: 0.5-7.5 mm
f min./max.: 0.2-0.7 mm/U
Materials group: P (primary application) | M (secondary application)
f min.: 0,2 mm/r
max. f: 0,7 mm/r
max. ap: 7,5 mm
min. ap: 0,5 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RP1
Min./max. Vc in steel: 90-200 m/min
Min./max. Vc in stainless steel: 70-210 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370652

EAN no.: 4050293728071
