Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 15
Thickness of indexable insert ISO: 06
Corner radius of indexable insert ISO: 08
Coating: PVD
Carbide type area ISO: S
Machining conditions for indexable insert: Medium
Carbide type ISO: S15
Carbide type: APS15T

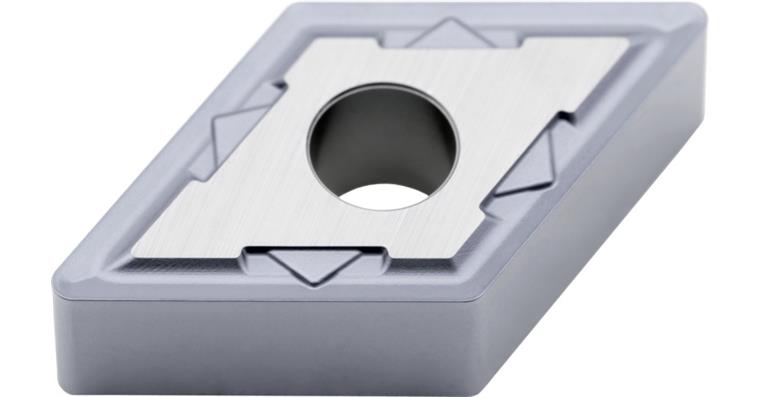

ISO-Code Rotating: DNMG 150608
Material to be processed: Special alloy | Stainless steel
min./max. ap: 0.4-3.0 mm
f min./max.: 0.1-0.3 mm/U
Materials group: S (primary application) | M (secondary application)
f min.: 0,1 mm/r
max. f: 0,3 mm/r
max. ap: 3,0 mm
min. ap: 0,4 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MS1
Min./max. Vc in stainless steel: 50-220 m/min
Min./max. Vc in special alloys: 30-120 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370108

EAN no.: 4050293565218
