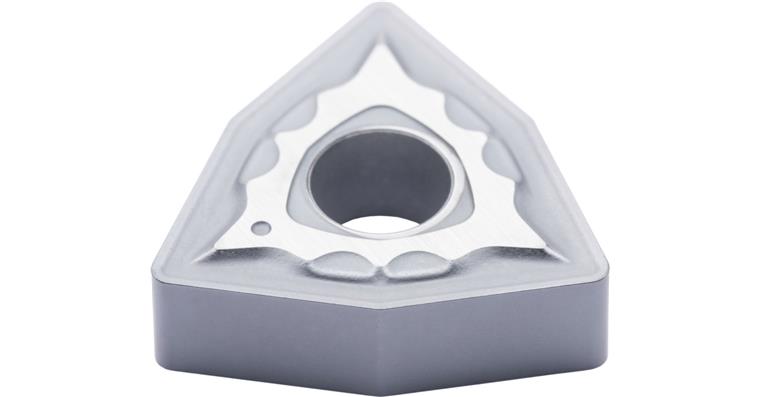

ATORN cemented carbide indexable insert WNMG 080408-RM5 APM25T

ATORN cemented carbide indexable insert WNMG 080408-RM5 APM25T

ATORN cemented carbide indexable insert WNMG 080408-RM5 APM25T
Item no: 1019431 134

Online price:

Available for immediate delivery

Application
For longitudinal turning and facing with a wide infeed range and stable cutting geometry in moderate cutting conditions

Advantage
  • perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
  • Very robust and stable cutting geometry, optimised for high feed rates in the medium to high infeed range in unfavourable cutting conditions


Brand: ATORN
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 08
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: PVD
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M25
Carbide type: APM25T
ISO-Code Rotating: WNMG 080408
Material to be processed: Stainless steel | Steel
min./max. ap: 0.5-6 mm
f min./max.: 0.2-0.5 mm/U
Materials group: M (primary application) | P (secondary application)
f min.: 0,2 mm/r
max. f: 0,5 mm/r
max. ap: 6 mm
min. ap: 0,5 mm
Supply type: Roughing - Stable edge at raised feed values
Chip breaker code: RM5
Min./max. Vc in steel: 130-250 m/min
Min./max. Vc in stainless steel: 100-250 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370085

EAN no.: 4050293564983

Product Datasheet
