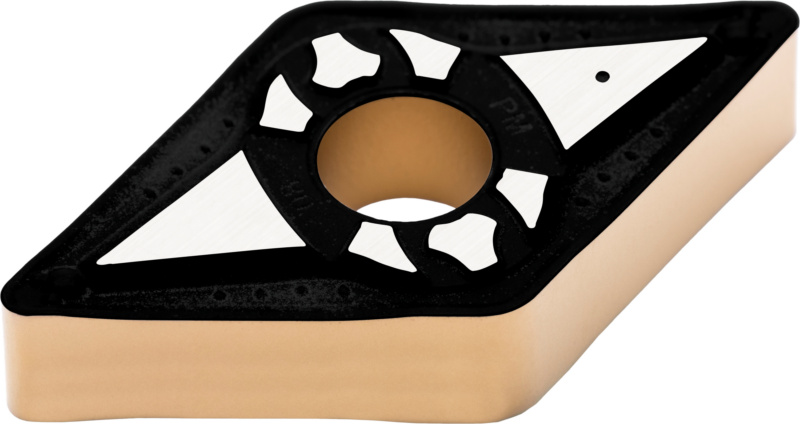

ATORN carbide indexable insert DNMG 150612-MP5 ACP15T

ATORN carbide indexable insert DNMG 150612-MP5 ACP15T

ATORN carbide indexable insert DNMG 150612-MP5 ACP15T
Item no: 1019410 109

Online price:

Available in 6-8 working days.

Application
For longitudinal turning and copy turning with a wide infeed range in favourable cutting conditions

Advantage
  • Very high level of hardness and wear resistance, for high service life requirements with favourable cutting conditions
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 15
Thickness of indexable insert ISO: 06
Corner radius of indexable insert ISO: 12
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P15
Carbide type: ACP15T
ISO-Code Rotating: DNMG 150612
Material to be processed: Cast metal | Steel
min./max. ap: 1.0-4.0 mm
f min./max.: 0.2-0.45 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,2 mm/r
max. f: 0,45 mm/r
max. ap: 4,0 mm
min. ap: 1,0 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MP5
Min./max. Vc in steel: 100-400 m/min
Min./max. Vc in cast iron: 140-520 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370008

EAN no.: 4050293564211

Product Datasheet
