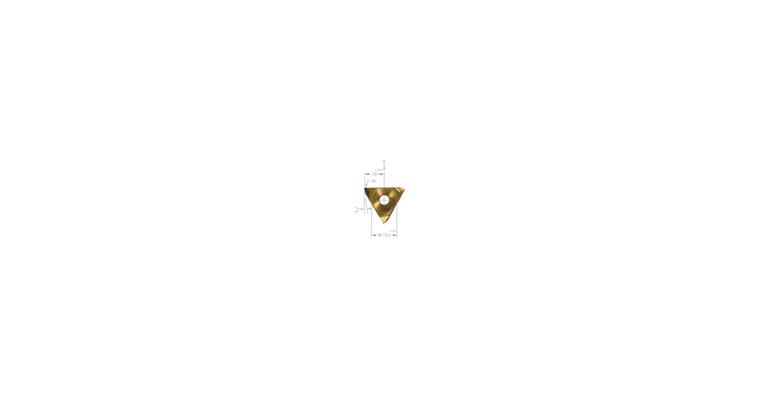

Indexable insert DED.0110.00-D for holder R/L..1-D cat. no. 18765-18766

Indexable insert DED.0110.00-D for holder R/L..1-D cat. no. 18765-18766

Indexable insert DED.0110.00-D for holder R/L..1-D cat. no. 18765-18766
Item no: 1018768 107

Online price:

Available for immediate delivery

Application
For locking grooves in accordance with DIN 471/472. Universal use for almost all materials. Limited use for dry machining.

Execution
  • 3 cutting edges
  • Sintered version
  • Positive-ground cutting edge geometries
  • Extremely soft cut
  • Low cutting forces
  • Cutting-off insert with chip breaker
  • High thermal and chemical stability
  • Low friction coefficient


Brand: DUEMMEL
Nominal dimension of slot width: 1,1 mm
Recessing width (S -0.05mm): 1,24 mm
f min./max.: 0.02-0.25 mm/U
Machining direction: Neutral
Surface: TiAlN
Material to be processed: Steel | Cast metal | Stainless steel | Special alloy | Non-ferrous metal
Min./max. Vc in steel: 60-200 m/min
Min./max. Vc in stainless steel: 20-160 m/min
Min./max. Vc in cast iron: 20-180 m/min
Min./max. Vc in non-ferrous metals: 60-600 m/min
Min./max. Vc in special alloys: 15-150 m/min
Carbide type: AL41F

Manufacturer part no.: 11960169

EAN no.: 4050293274417

Product Datasheet
