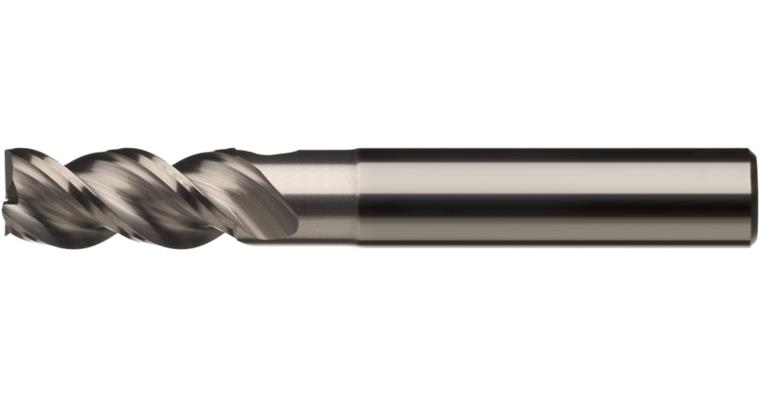

ATORN solid carbide end mill T3 HA, 12.0 x 28 x 39 x 84 mm, plain

ATORN solid carbide end mill T3 HA, 12.0 x 28 x 39 x 84 mm, plain

ATORN solid carbide end mill T3 HA, 12.0 x 28 x 39 x 84 mm, plain
Item no: 1016722 107

Online price:

Still in stock: 3

Application
End mill for universal machining of non-ferrous metals.

Execution
  • Solid carbide ultra-fine grain
  • Centre cutting
  • With clearance
  • Uncoated
  • Straight shank in accordance with DIN 6535 HA
  • With edge protection chamfer
  • Defined edge rounding of the cutting edge
  • Mirror finish


Brand: ATORN
Cutting material: SC
Surface: Uncoated
Type: W
Number of cutting edges (Z): 3 PCS
Twist angle: 45°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 12 mm
Cutting edge length: 28 mm
Clearance length: 39 mm
Length: 84 mm
Edge protection chamfer length: 0,2 mm
Clearance diameter: 11,4 mm
Shank diameter: 12 mm
fz aluminium: 0,096 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11263216

EAN no.: 4050293340655

Product Datasheet Datasheet cutting values
