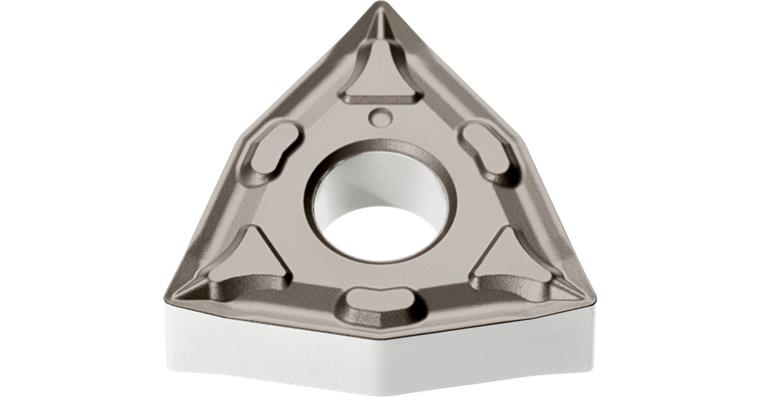

ATORN indexable insert, negative, WNMG 080404-FM HC7520

ATORN indexable insert, negative, WNMG 080404-FM HC7520

ATORN indexable insert, negative, WNMG 080404-FM HC7520
Item no: 1018620 612

Online price:

sold out
Replacement article

Execution
Sintered cemented carbide indexable insert

Advantage
  • Perfect combination of wear resistance and toughness, for high process stability and a wide range of applications
  • Very positive chip breaker for ideal chip breaking at lower cutting depths


Brand: ATORN
Shape of indexable insert ISO: W
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 08
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M20
Carbide type: HC7520
ISO-Code Rotating: WNMG 080404
Material to be processed: Stainless steel | Special alloy
min./max. ap: 0.2-1 mm
f min./max.: 0.05-0.12 mm/U
Materials group: M (primary application) | S (secondary application)
f min.: 0,05 mm/r
max. f: 0,12 mm/r
max. ap: 1 mm
min. ap: 0,2 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FM
Min./max. Vc in stainless steel: 110-260 m/min
Min./max. Vc in special alloys: 30-60 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870476

EAN no.: 4050293081268

Product Datasheet
