Brand: ATORN
Shape of indexable insert ISO: V
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P05
Carbide type: HC7605

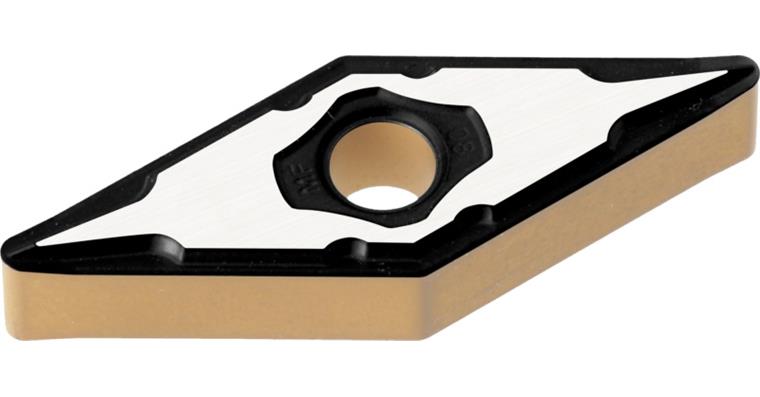

ISO-Code Rotating: VNMG 160408
Material to be processed: Steel | Cast iron
min./max. ap: 0.1-1.5 mm
f min./max.: 0.1-0.4 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,1 mm/r
max. f: 0,4 mm/r
max. ap: 1,5 mm
min. ap: 0,1 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FP1
Min./max. Vc in steel: 115-295 m/min
Min./max. Vc in cast iron: 135-395 m/min

ATORN-No.: 12350198

EAN no.: 4050293663211
