ATORN indexable insert, positive, VCMT 160404-MP HC7620

ATORN indexable insert, positive, VCMT 160404-MP HC7620

ATORN indexable insert, positive, VCMT 160404-MP HC7620
Item no: 1018615 312

Online price:

Available for immediate delivery

Application
For longitudinal turning and copy turning with a wide infeed range in moderate cutting conditions

Execution
Sintered cemented carbide indexable insert

Advantage
  • Perfect combination of wear resistance and durability, for high process stability and broad range of applications
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: V
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P20
Carbide type: HC7620
ISO-Code Rotating: VCMT 160404
Material to be processed: Steel | Cast metal
min./max. ap: 0.4-2.5 mm
f min./max.: 0.12-0.25 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,12 mm/r
max. f: 0,25 mm/r
max. ap: 2,5 mm
min. ap: 0,4 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MP
Min./max. Vc in steel: 110-320 m/min
Min./max. Vc in cast iron: 140-260 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870656

EAN no.: 4050293351873

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • ATORN indexable insert, negative, DNMG 110408-MP HC7610
  •
    1/2 inch rot. head rev. ratchet DIN 3122/ISO 3315 CA steel finely toothed L=265
  •
    ATORN indexable insert, negative, WNMG 080408-MS HC7220
    12,06 €
  • ATORN indexable insert, negative, DNMG 150608-RM HC7530
  •
    Plaster dispenser QuickFix ELASTIC incl. 2 packs of 45 plasters
    31,00 €
  • ATORN indexable insert countersink, single-edge cutter CC..09 27.0 mm HB
    154,96 €
  • ATORN indexable insert, negative, CNMG 120412-MM HC7520
    3,80 €
  • 3/8 inch rot head rev. ratchet DIN 3122/ISO 3315 CA-steel finely toothed L=194
    57,82 €
  • ATORN indexable insert, negative, CNMG 120408-WP HC7520
    3,80 €
  • ATORN indexable insert, positive, CCGT 09T308-MN HC6310
    13,55 €
  • Manual selector switch with magnet control cable 4-2 DUO hose length 3000 mm
  •

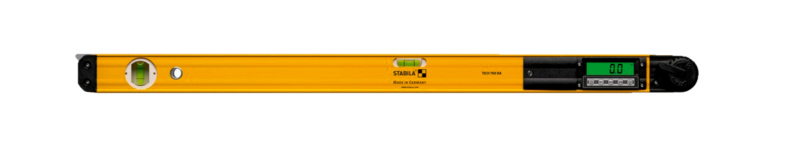

    Goniometer digital TECH 700 DA measuring range 0-270° length 80 cm
