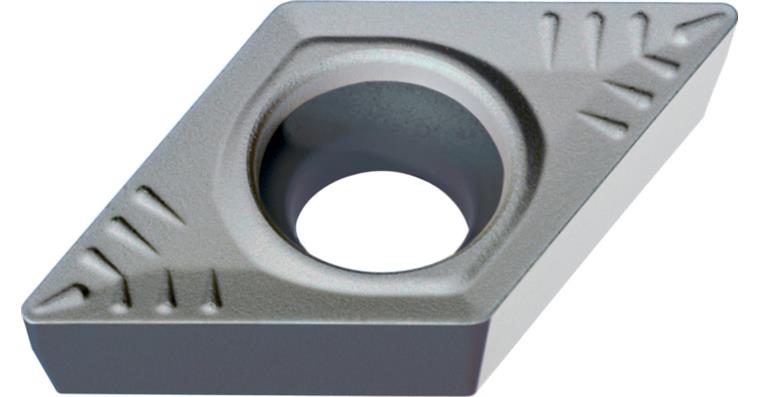

ATORN indexable insert, positive, DCMT 070204-MP HC7620

ATORN indexable insert, positive, DCMT 070204-MP HC7620

ATORN indexable insert, positive, DCMT 070204-MP HC7620
Item no: 1018560 210

Online price:

Available for immediate delivery

Application
For longitudinal turning and copy turning with a wide infeed range in moderate cutting conditions

Execution
Sintered cemented carbide indexable insert

Advantage
  • Perfect combination of wear resistance and durability; for high process stability and a broad range of uses
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 07
Thickness of indexable insert ISO: 02
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P20
Carbide type: HC7620
ISO-Code Rotating: DCMT 070204
Material to be processed: Steel | Cast metal
min./max. ap: 0.4-2 mm
f min./max.: 0.12-0.2 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,12 mm/r
max. f: 0,2 mm/r
max. ap: 2 mm
min. ap: 0,4 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MP
Min./max. Vc in steel: 110-320 m/min
Min./max. Vc in cast iron: 140-260 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870554

EAN no.: 4050293351347

Product Datasheet
