ATORN indexable insert TCMT 06T102-FM2 ACM25T-1

ATORN indexable insert TCMT 06T102-FM2 ACM25T-1

ATORN indexable insert TCMT 06T102-FM2 ACM25T-1
Item no: 1018594 812

Online price:

Available in 6-8 working days.

Notes

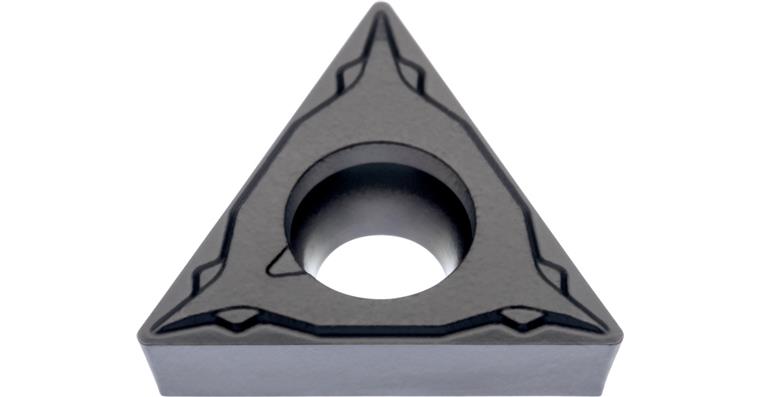

Indexable insert TCMT 06T102-FM2 ACM25T-1

Brand: ATORN
Shape of indexable insert ISO: T
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 06
Thickness of indexable insert ISO: T1
Corner radius of indexable insert ISO: 02
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M25
Carbide type: ACM25T-1
ISO-Code Rotating: TCMT 06T102
min./max. ap: 0.1-1.5 mm
f min./max.: 0.03-0.26 mm/U
f min.: 0,03 mm/r
max. f: 0,26 mm/r
max. ap: 1,5 mm
min. ap: 0,1 mm
Chip breaker code: FM2
Min./max. Vc in stainless steel: 110-240 m/min

ATORN-No.: 12350445

EAN no.: 4066107025649

Product Datasheet Datasheet cutting values
