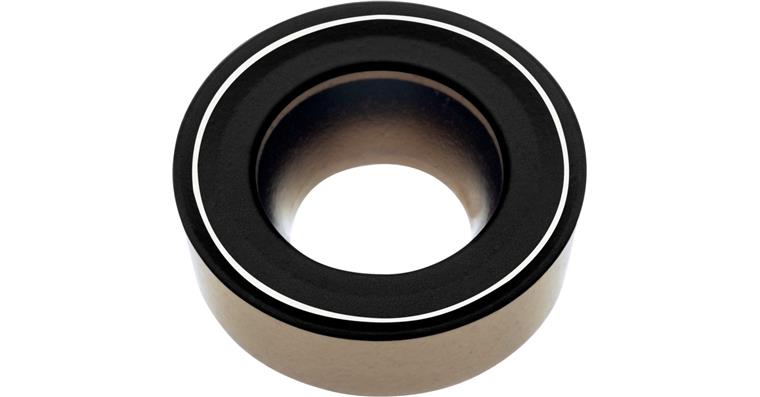

ATORN indexable insert RCMT 0803M0-MP6 ACP25T-1

ATORN indexable insert RCMT 0803M0-MP6 ACP25T-1

ATORN indexable insert RCMT 0803M0-MP6 ACP25T-1
Item no: 1018581 253

Online price:

Available in 6-8 working days.

Notes
RCMT indexable insert, medium machining MP6 ACP25T-1

Brand: ATORN
Shape of indexable insert ISO: R
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 08
Thickness of indexable insert ISO: 03
Corner radius of indexable insert ISO: M0
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P25
Carbide type: ACP25T-1
ISO-Code Rotating: RCMT 0803M0
Material to be processed: Cast iron | Steel
min./max. ap: 0.8-3.2 mm
f min./max.: 0.04-3 mm/U
f min.: 0,04 mm/r
max. f: 3 mm/r
max. ap: 3,2 mm
min. ap: 0,8 mm
Chip breaker code: MP6
Min./max. Vc in steel: 100-300 m/min

ATORN-No.: 12350836

EAN no.: 4066107044527

Product Datasheet Datasheet cutting values
