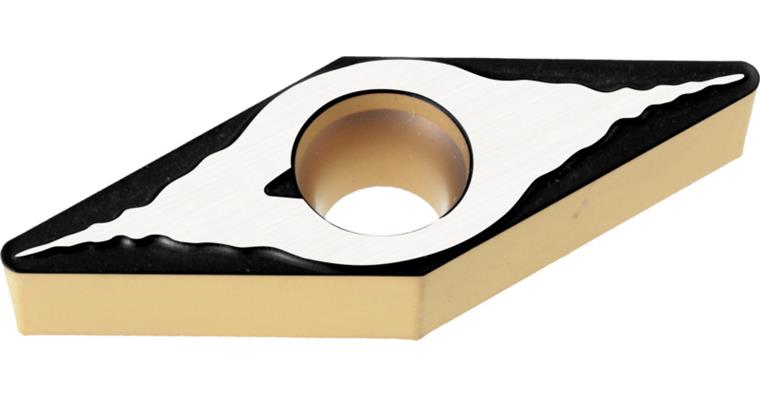

ATORN indexable insert VCMT 160404-MP1 ACP15T-1

ATORN indexable insert VCMT 160404-MP1 ACP15T-1

ATORN indexable insert VCMT 160404-MP1 ACP15T-1
Item no: 1018581 524

Online price:

Available in 6-8 working days.

Advantage
  • very high level of hardness and wear resistance, for high service life requirements in favourable cutting conditions
  • positive soft-cutting chip geometry with a wide infeed range and stable cutting edges


Brand: ATORN
Shape of indexable insert ISO: V
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 04
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Good
Carbide type ISO: P15
Carbide type: ACP15T-1
ISO-Code Rotating: VCMT 160404
Material to be processed: Steel | Cast iron
min./max. ap: 0.2-2.7 mm
f min./max.: 0.07-0.45 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,07 mm/r
max. f: 0,45 mm/r
max. ap: 2,7 mm
min. ap: 0,2 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MP1
Min./max. Vc in steel: 115-295 m/min
Min./max. Vc in cast iron: 135-395 m/min

ATORN-No.: 12350995

EAN no.: 4066107046118

Product Datasheet Datasheet cutting values
