Brand: ATORN
Shape of indexable insert ISO: S
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 09
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 08
Coating: CVD
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P25
Carbide type: ACP25T-1

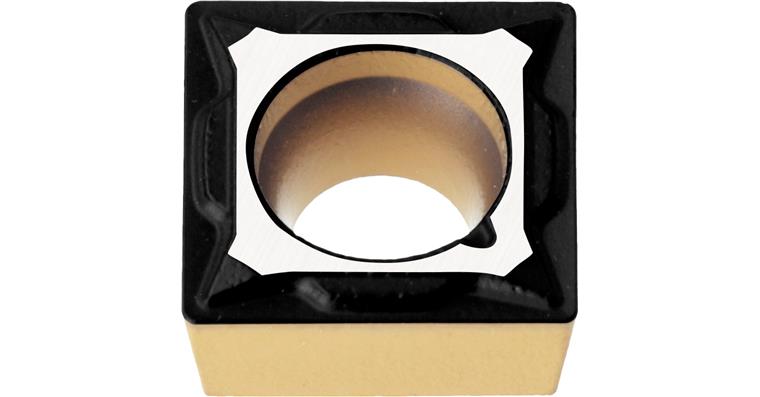

ISO-Code Rotating: SCMT 09T308
Material to be processed: Steel | Cast iron
min./max. ap: 0.11-2 mm
f min./max.: 0.06-0.3 mm/U
Materials group: P (primary application) | K (secondary application)
f min.: 0,06 mm/r
max. f: 0,3 mm/r
max. ap: 2 mm
min. ap: 0,11 mm
Supply type: Smoothing - Positive chip breaker for low cutting depths
Chip breaker code: FP1
Min./max. Vc in steel: 115-270 m/min
Min./max. Vc in cast iron: 135-370 m/min

ATORN-No.: 12350859

EAN no.: 4066107044756
