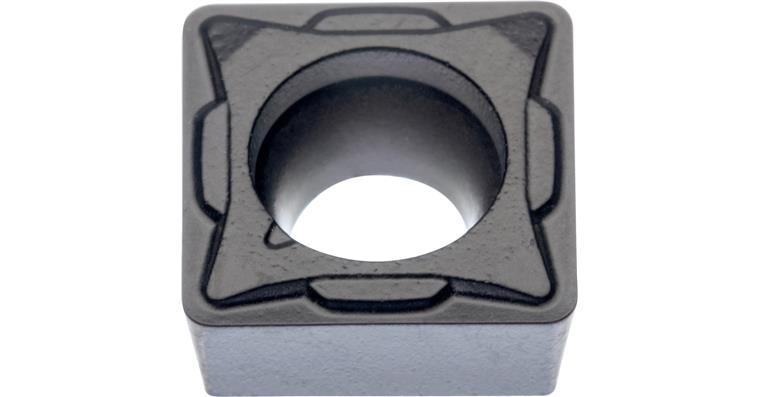

ATORN indexable insert SCMT 09T308-FM2 ACM25T-1

ATORN indexable insert SCMT 09T308-FM2 ACM25T-1

ATORN indexable insert SCMT 09T308-FM2 ACM25T-1
Item no: 1018578 611

Online price:

Available in 6-8 working days.

Notes
Indexable insert SCMT 09T304-FM2 ACM25T-1

Brand: ATORN
Shape of indexable insert ISO: S
Clearance angle of indexable insert ISO: C
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 09
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 08
Carbide type area ISO: M
Machining conditions for indexable insert: Medium
Carbide type ISO: M25
Carbide type: ACM25T-1
ISO-Code Rotating: SCMT 09T308
min./max. ap: 0.2-2 mm
f min./max.: 0.08-0.3 mm/U
f min.: 0,08 mm/r
max. f: 0,3 mm/r
max. ap: 2 mm
min. ap: 0,2 mm
Chip breaker code: FM2
Min./max. Vc in stainless steel: 110-240 m/min

ATORN-No.: 12350444

EAN no.: 4066107025632

Product Datasheet Datasheet cutting values
