Brand: ATORN

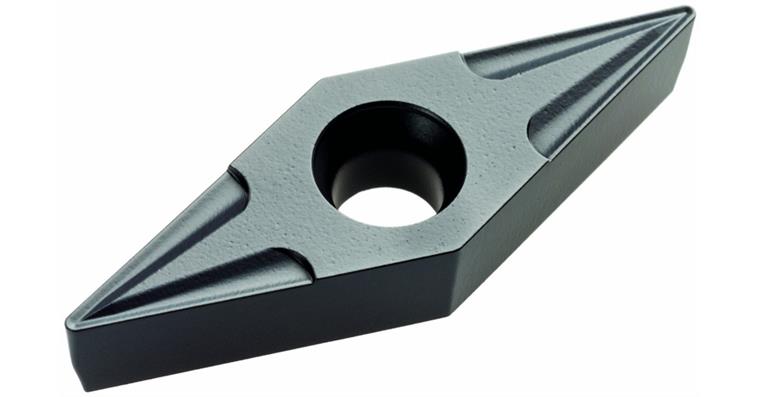

Shape of indexable insert ISO: V
Clearance angle of indexable insert ISO: B
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: T
Size of indexable insert ISO: 16
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Carbide type area ISO: P
Machining conditions for indexable insert: Medium
Carbide type ISO: P25
Carbide type: ACP25T
ISO-Code Rotating: VBMT 160408
Material to be processed: Stainless steel | Steel | Cast metal
min./max. ap: 0.5-3.0 mm
f min./max.: 0.12-0.21 mm/U
Materials group: P (primary application) | M (secondary application) | K (secondary application)
f min.: 0,12 mm/r
max. f: 0,21 mm/r
max. ap: 3,0 mm
min. ap: 0,5 mm
Supply type: Medium finishing
Chip breaker code: XM1
Min./max. Vc in steel: 100-240 m/min
Min./max. Vc in cast iron: 120-250 m/min
Min./max. Vc in stainless steel: 70-200 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 12370719

EAN no.: 4050293728743

Product Datasheet
