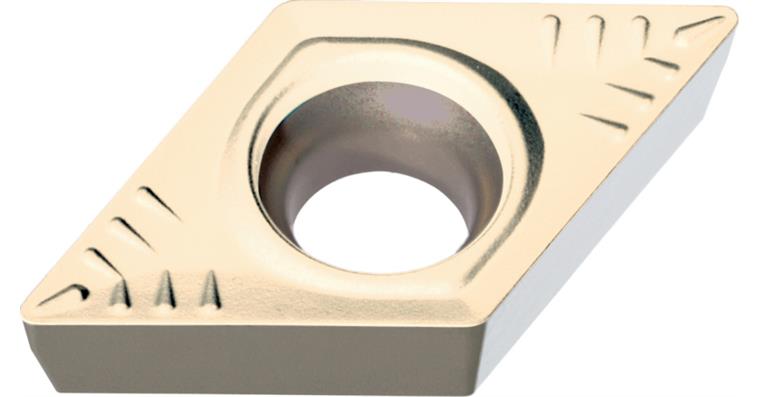

ATORN indexable insert, positive, DCMT 11T308-MS HC7220

ATORN indexable insert, positive, DCMT 11T308-MS HC7220

ATORN indexable insert, positive, DCMT 11T308-MS HC7220
Item no: 1018560 523

Online price:

Only while stocks last: 30
Replacement article

Application
For longitudinal turning and copy turning with a wide infeed range in moderate cutting conditions

Execution
sintered cemented carbide indexable insert

Advantage
  • perfect combination of toughness and resistance to wear, for high degree of process stability and broad range of applications
  • Positive soft-cutting chip geometry with a wide infeed range and stable blades


Brand: ATORN
Shape of indexable insert ISO: D
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 11
Thickness of indexable insert ISO: T3
Corner radius of indexable insert ISO: 08
Coating: CVD
Carbide type area ISO: S
Machining conditions for indexable insert: Medium
Carbide type ISO: S20
Carbide type: HC7220
ISO-Code Rotating: DNMG 11T308
Material to be processed: Stainless steel | Special alloy
min./max. ap: 0.6-4 mm
f min./max.: 0.16-0.3 mm/U
Materials group: S (primary application) | M (secondary application)
f min.: 0,16 mm/r
max. f: 0,3 mm/r
max. ap: 4 mm
min. ap: 0,6 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MS
Min./max. Vc in stainless steel: 120-190 m/min
Min./max. Vc in special alloys: 30-60 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870569

EAN no.: 4050293351668

Product Datasheet
