Brand: ATORN
Shape of indexable insert ISO: C
Clearance angle of indexable insert ISO: N
Tolerance class of indexable insert ISO: M
Indexable insert type ISO: G
Size of indexable insert ISO: 12
Thickness of indexable insert ISO: 04
Corner radius of indexable insert ISO: 08
Coating: CVD
Carbide type area ISO: S
Machining conditions for indexable insert: Medium
Carbide type ISO: S10
Carbide type: HC7210

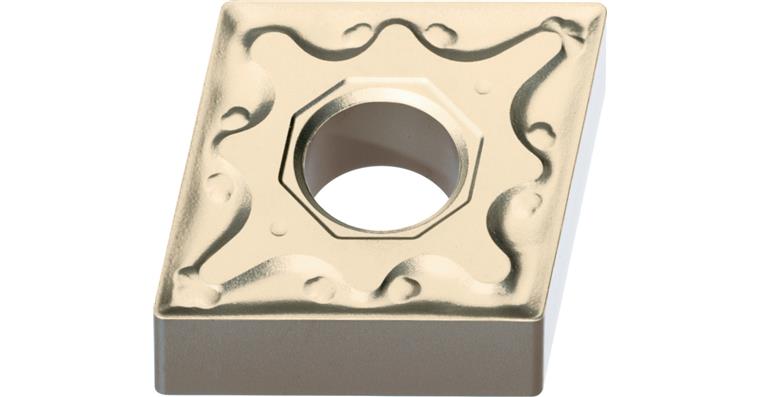

ISO-Code Rotating: CNMG 120408
Material to be processed: Stainless steel | Special alloy
min./max. ap: 0.5-4.0 mm
f min./max.: 0.16-0.30 mm/U
Materials group: S (primary application) | M (secondary application)
f min.: 0,16 mm/r
max. f: 0,30 mm/r
max. ap: 4,0 mm
min. ap: 0,5 mm
Supply type: Medium processing - Universal geometry with wide service range
Chip breaker code: MS
Min./max. Vc in stainless steel: 120-210 m/min
Min./max. Vc in special alloys: 30-60 m/min
Number of pieces per packet: 10 PCS

ATORN-No.: 10870686

EAN no.: 4050293379839
