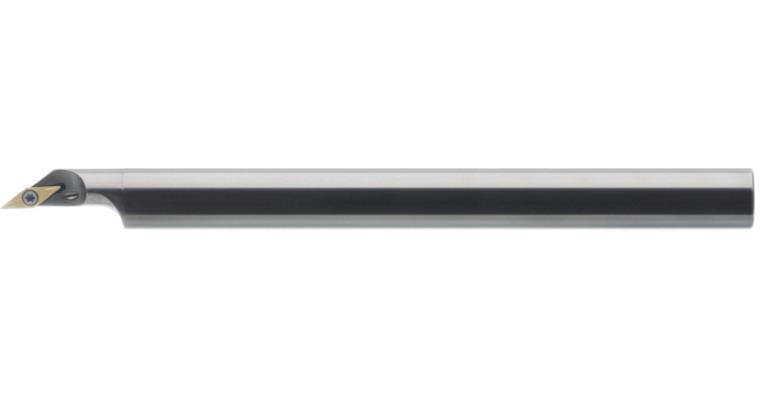

ATORN Boring bar A08F SVJCL 05

ATORN Boring bar A08F SVJCL 05

ATORN Boring bar A08F SVJCL 05
Item no: 1018509 110

Online price:

Available in 4-6 working days.

Application
for longitudinal and copy turning with VC indexable insert 35°.

Execution
Precision-manufactured boring bar, steel, with internal cooling, offset, shape C, 52° pitch angle, 35° tip angle, 7° clearance angle

Advantage
  • slender geometry for longitudinal and copy turning
  • positive body geometry ensures low cutting forces


Brand: ATORN
ISO name: A 08F SVJC R/L 05
Min. bore diameter (D min.): 8 mm
Shank diameter (d): 8 mm
Clearance length (l2): 15 mm
Length (l1): 80 mm
Clamping surface height (h): 7 mm
Programming size (f): 1 mm
Suitable for indexable inserts (ISO): VC.. 0501..
Tool design: Left
DIN: 8024

ATORN-No.: 12230341

EAN no.: 4050293449570

Product Datasheet
