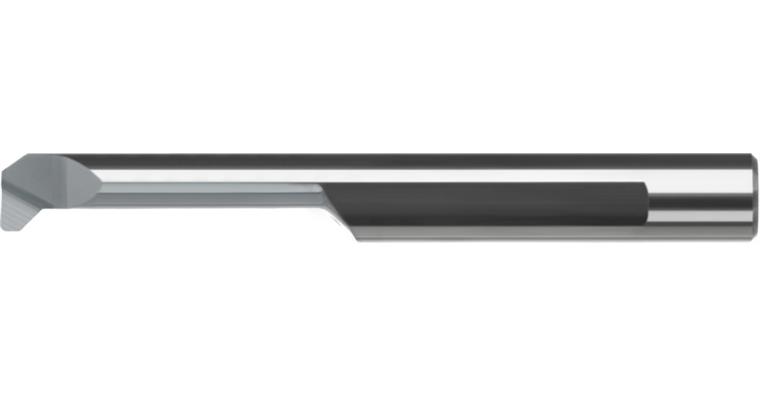

ATORN mini cutting insert ADR 6.0mm R0.5 L27 HW5615

ATORN mini cutting insert ADR 6.0mm R0.5 L27 HW5615

ATORN mini cutting insert ADR 6.0mm R0.5 L27 HW5615
Item no: 1018317 015

Online price:

Available in 4-6 working days.

Application
For chamfering and grooving for thread undercutting in the material groups of steel and (stainless steel) material groups with low to high cutting speeds and medium cutting conditions.

Execution
solid carbide 93° cutting insert with inner cooling

Advantage
  • very hard cemented carbide type ensures low wear
  • universal geometry for grooves, chamfers and thread undercuts
  • extremely sharp cutting edges ensure cutting with process reliability


Brand: ATORN
ISO name: AD
Shank diameter (D): 6 mm
Length (L): 58 mm
Clearance length (L1): 27 mm
Radius (R): 0,5 mm
Programming size (F): 2,8 mm
Recessing width (B): 1,5 mm
Programming size 2 (H): 1,4 mm
Min. bore diameter (D min.): 6,1 mm
Machining direction: Right
Carbide type: HW5615
Material to be processed: Stainless steel | Non-ferrous metal

ATORN-No.: 11947148

EAN no.: 4050293377033

Product Datasheet
