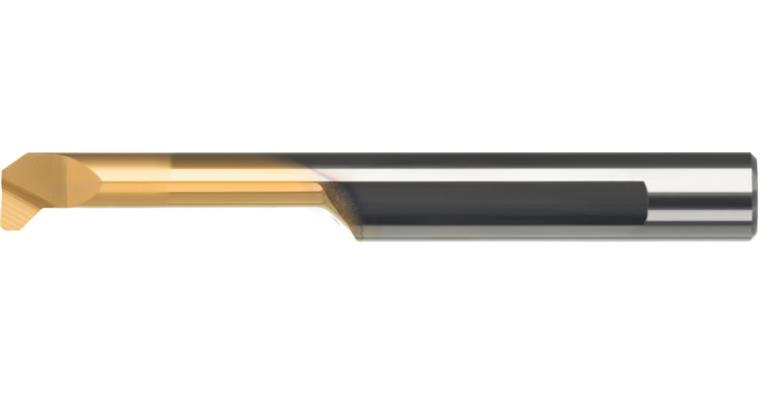

ATORN mini cutting insert ADL 6.0mm R0.5 L27 HC5640

ATORN mini cutting insert ADL 6.0mm R0.5 L27 HC5640

ATORN mini cutting insert ADL 6.0mm R0.5 L27 HC5640
Item no: 1018317 006

Online price:

Available in 4-6 working days.

Application
For chamfering and grooving for thread undercutting in the material groups of steel and (stainless steel) material groups with low to high cutting speeds and medium cutting conditions.

Execution
solid carbide 93° cutting insert with inner cooling

Advantage
  • tough cemented carbide type for broad application field
  • universal geometry for grooves, chamfers and thread undercuts
  • ideal for use with inefficient machines and unstable cutting conditions


Brand: ATORN
ISO name: AD
Shank diameter (D): 6 mm
Length (L): 58 mm
Clearance length (L1): 27 mm
Radius (R): 0,5 mm
Programming size (F): 2,8 mm
Recessing width (B): 1,5 mm
Programming size 2 (H): 1,4 mm
Min. bore diameter (D min.): 6,1 mm
Machining direction: Left
Carbide type: HC5640
Material to be processed: Steel | Stainless steel | Non-ferrous metal | Cast metal

ATORN-No.: 11948130

EAN no.: 4050293666410

Product Datasheet
