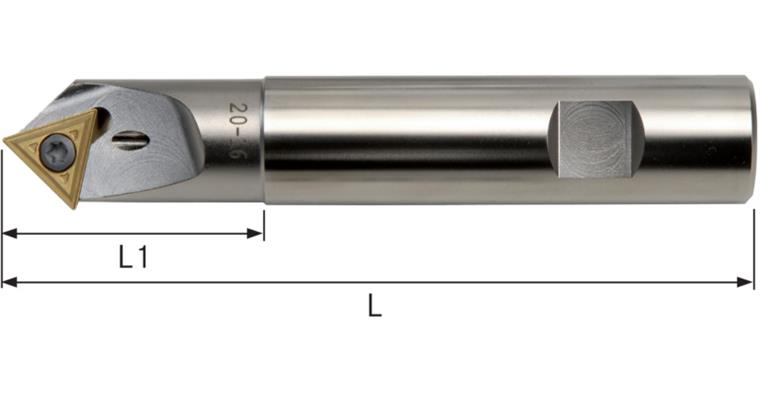

ATORN indexable insert cutter and centring cutter 45 degrees, L=200 mm D=20.0mm

ATORN indexable insert cutter and centring cutter 45 degrees, L=200 mm D=20.0mm

ATORN indexable insert cutter and centring cutter 45 degrees, L=200 mm D=20.0mm
Item no: 1017536 103

Online price:

Available in 4-6 working days.

Application
centring and NC spot drilling, chamfering, V-groove milling, lathe facing

Execution
  • with straight shank and clamping surface in accordance with DIN 1835 B
  • Shaft tolerance h6
  • With internal cooling
  • Clamping screw tightening torque (indexable insert) M4 = 5.2 Nm


Brand: ATORN
Max. cutting edge diameter (D max.): 20 mm
Min. cutting edge diameter (D min.): 0,2 mm
Chamfer angle: 45 Degree
Clearance length: 80 mm
Length: 200 mm
Shank diameter: 20 mm
Number of cutting edges: 1 PCS
Suitable for indexable inserts: TCMX 16T3..

ATORN-No.: 11113113

Product Datasheet
