ATORN chamfer and centring cutter set 45 degrees

ATORN chamfer and centring cutter set 45 degrees

ATORN chamfer and centring cutter set 45 degrees
Item no: 1017536 204

Online price:

Available for immediate delivery

Application
Centring and NC spot drilling, chamfering, V-groove milling, lathe facing

Execution
  • Including 5 indexable inserts
  • Straight shank and clamping surface in accordance with DIN 1835 B
  • Shaft tolerance h6
  • Clamping screw tightening torque (indexable insert) M4 = 5.2 Nm

Delivery

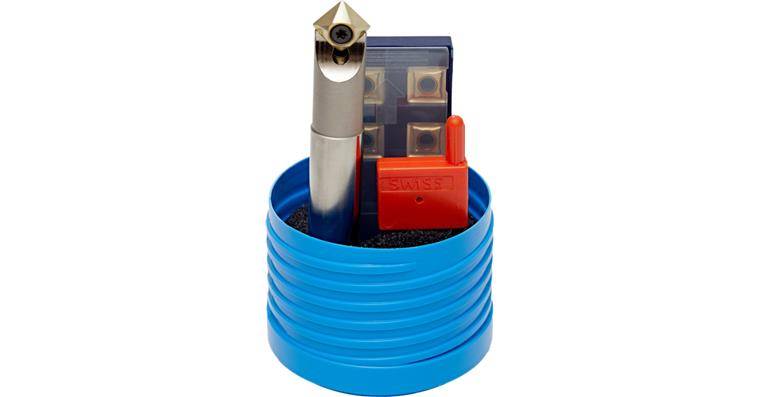

Set consists of a holder and five reversible tips SEEX 12T4.


Brand: ATORN
Max. cutting edge diameter (D max.): 17 mm
Min. cutting edge diameter (D min.): 0,8 mm
Chamfer angle: 45 Degree
Clearance length: 40 mm
Length: 120 mm
Shank diameter: 16 mm
Number of cutting edges: 1 PCS

ATORN-No.: 12232717

EAN no.: 4050293636994

Product Datasheet
