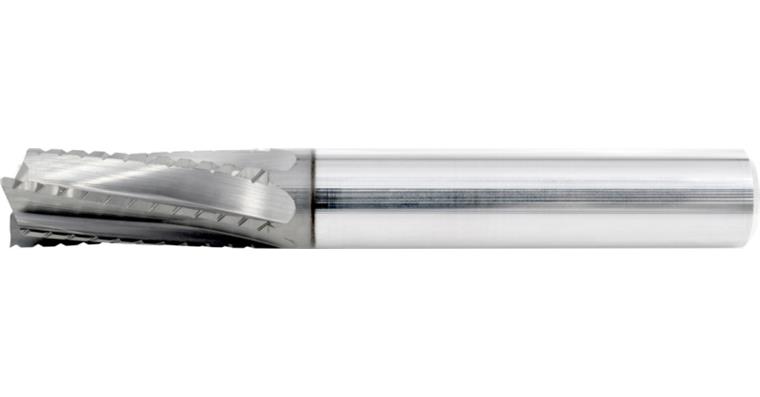

ATORN SC HSC end mill, diameter - G/CFRP diameter 8.0 mm W10° L:63x20 T=6 d8

ATORN SC HSC end mill, diameter - G/CFRP diameter 8.0 mm W10° L:63x20 T=6 d8

ATORN SC HSC end mill, diameter - G/CFRP diameter 8.0 mm W10° L:63x20 T=6 d8
Item no: 1016911 115

Online price:

Still in stock: 3

Application
HSC end mill for machining CFRP/GFRP materials with large flutes and synchronous chip breakers.

Execution
  • Solid carbide ultra-fine grain
  • Diamond coating
  • Straight shank in accordance with DIN 6535 HA

Advantage
  • Large flutes with synchronous chip breakers
  • Continuous cutting, good chip removal

Notes
You can find detailed information on the usage value of this tool on our online shop.

Brand: ATORN
Cutting material: SC
Surface: Diamond coating
Number of cutting edges (Z): 6 PCS
Twist angle: 47°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 8 mm
Cutting edge length: 20 mm
Length: 63 mm
Shank diameter: 8 mm
fz aluminium: 0,55 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 10440692

EAN no.: 4050293439496

Product Datasheet
