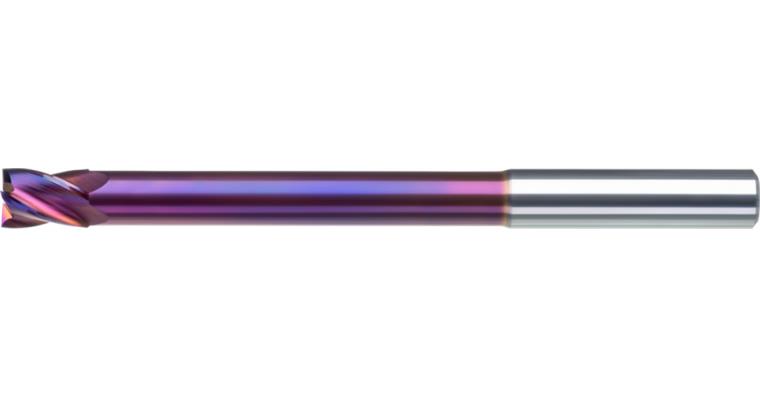

ATORN RockTec PRO end mill, extra-long 10x14x83x125 mm T=4 HA

Versions

Item no: 1016781 410

Online price:

Catalogue price: You save:

Still in stock: 7

Min. order quantity: 1

Application
End mill in extra-long version, for machining materials up to 65 HRC, e.g. in die and mould making.

Execution

Ultra Micro fine grain cutting material
Cutting edge finish
HA shank in line with DIN 6535
with clearance
Type H
With RockTec PRO coating

Advantage

optimum chip removal and temperature resistance
optimised geometry for machining hard materials
maximum service life due to RockTec PRO coating

Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 4 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Extra long
Cutting edge diameter: 10 mm
Cutting edge length: 14 mm
Clearance length: 83 mm
Length: 125 mm
Clearance diameter: 9,2 mm
Shank diameter: 10 mm
fz hard 65 HRC: 0,067 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11264606

EAN no.: 4066107031572

Product Datasheet Datasheet cutting values
