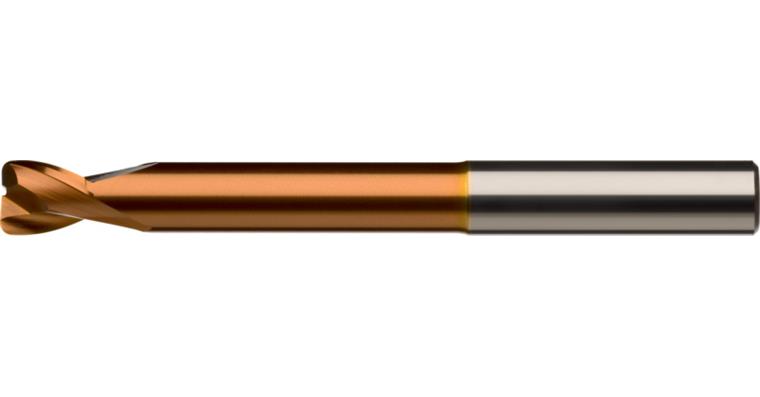

ATORN SC torus milling cutter T2, long, HA, 4.0 x 5 x 36 x 75, R0.3, coated

ATORN SC torus milling cutter T2, long, HA, 4.0 x 5 x 36 x 75, R0.3, coated

ATORN SC torus milling cutter T2, long, HA, 4.0 x 5 x 36 x 75, R0.3, coated
Item no: 1016746 102

Online price:

Available for immediate delivery

Application
Torus milling cutter, long version for machining non-ferrous metals.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in accordance with DIN 6535 HA
  • Defined edge rounding of the blade
  • Centre cutting
  • With clearance
  • ZrCN ULTRA N-coated
  • Radius tolerance = +/- 0.01 mm


Brand: ATORN
Cutting material: SC
Surface: ULTRA N
Type: W
Number of cutting edges (Z): 2 PCS
Twist angle: 30°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 4 mm
Cutting edge length: 5 mm
Clearance length: 36 mm
Length: 75 mm
Clearance diameter: 3,75 mm
Shank diameter: 4 mm
Edge radius: 0,3 mm
fz aluminium: 0,042 mm

ATORN-No.: 11263581

EAN no.: 4050293342222

Product Datasheet Datasheet cutting values
