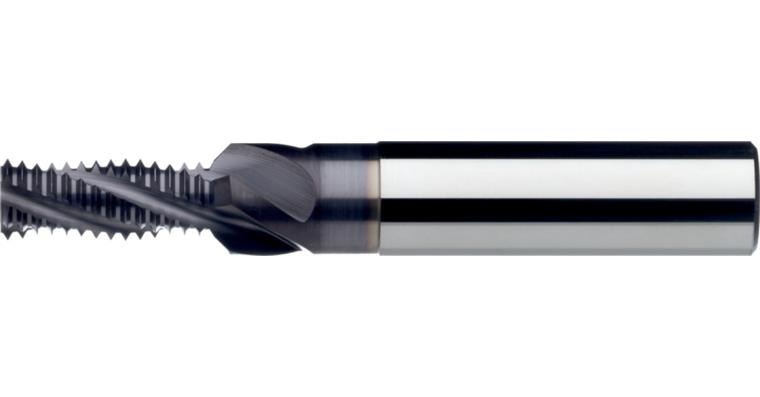

ATORN multi-range thread milling cutt. 45° SC TH/BH 2xD 8.0 mm 1.25 mm 74 mm HA

ATORN multi-range thread milling cutt. 45° SC TH/BH 2xD 8.0 mm 1.25 mm 74 mm HA

ATORN multi-range thread milling cutt. 45° SC TH/BH 2xD 8.0 mm 1.25 mm 74 mm HA
Item no: 1014636 105

Online price:

Available in 8-10 working days.

Application
For producing metric right-hand threads and left-hand threads with countersink on CNC machines in blind holes and through holes, in steel, stainless steel, non-ferrous metals, cast iron and special alloys material groups up to a strength of 1500 N/mm² in single-part production and series production.

Execution
Precision-ground thread milling cutter with chamfer for maximum requirements in terms of process reliability and service life

Advantage
  • Innovative cutting geometry and coating technology ensure very high degree of dimensional accuracy, process reliability and chip removal
  • High-quality cutting material and cutting edge treatment for very high service life requirements
  • Low tool costs thanks to high variability in the thread diameter, just one tool required for right-hand thread and left-hand thread
  • Significantly optimised process times, as bore and countersink are produced in one step


Brand: ATORN
Material to be processed: Universal use
Cutting material: SC
Surface: TiAlN
Hole type: Clearance/blind hole ≤ 2xD
Coolant supply: Internal
Tool holding device: HA parallel shank
Suitable for thread type: M | M-L
Nominal diameter: 8 mm
Pitch: 1,25 mm
Length (l1): 74 mm
Cutting edge length (l2): 18,08 mm
Countersunk length (lf): 19,1 mm
Countersink diameter (Df): 9 mm
Shank diameter: 10 mm
Number of cutting edges: 3 PCS
f steel 1000: 0,05 mm/r

ATORN-No.: 11190360

EAN no.: 4050293272116

Product Datasheet Datasheet cutting values
