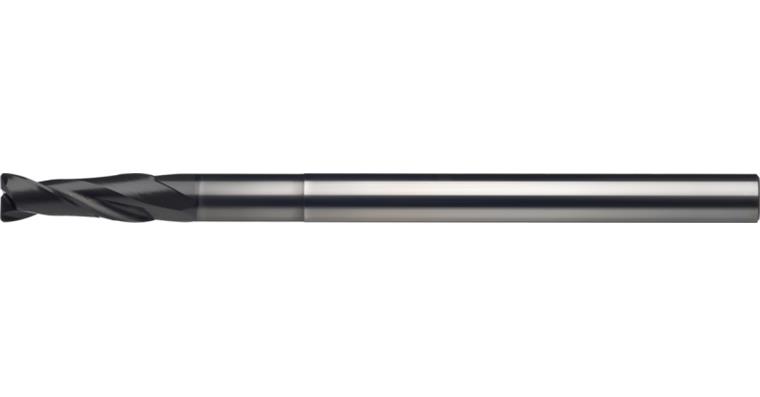

ATORN SC torus milling cutter, diamond-coated 6.0x100mm R=0.5mm DIN 6535 HA Z=2

ATORN SC torus milling cutter, diamond-coated 6.0x100mm R=0.5mm DIN 6535 HA Z=2

ATORN SC torus milling cutter, diamond-coated 6.0x100mm R=0.5mm DIN 6535 HA Z=2
Item no: 1016705 410

Online price:

Available in 4-6 working days.

Application
HSC torus milling cutter for machining aluminium with >12% silicon.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in accordance with DIN 6535 HA
  • Diamond-coated
  • Centre cutting
  • With clearance


Brand: ATORN
Cutting material: SC
Surface: Diamond coating
Type: N
Number of cutting edges (Z): 2 PCS
Twist angle: 30°
Tool holding device: HA parallel shank
Construction length: Extra long
Cutting edge diameter: 6 mm
Cutting edge length: 25 mm
Clearance length: 50 mm
Length: 100 mm
Clearance diameter: 5,8 mm
Shank diameter: 6 mm
Edge radius: 0,5 mm
fz graphite: 0,12 mm

ATORN-No.: 10440424

EAN no.: 4050293014105

Product Datasheet Datasheet cutting values
