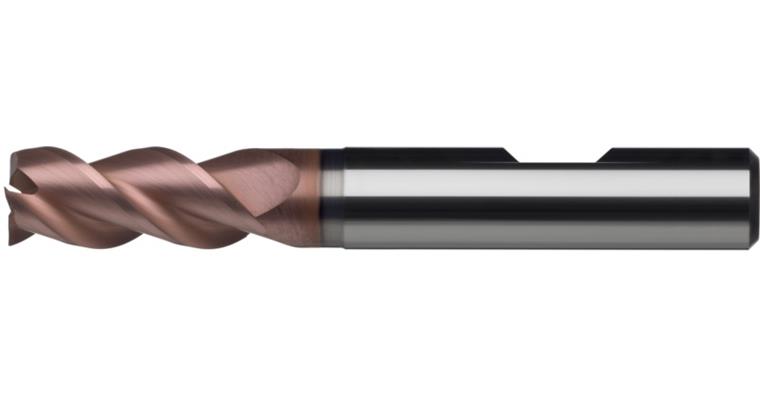

ATORN solid carbide end mill T=3 3.00 mm ultra coated DIN 6535HB

ATORN solid carbide end mill T=3 3.00 mm ultra coated DIN 6535HB

ATORN solid carbide end mill T=3 3.00 mm ultra coated DIN 6535HB
Item no: 1016607 101

Online price:

Available for immediate delivery

Application
End mill for universal use when plunge milling, groove milling and keyway cutting as well as face milling and peripheral milling.

Execution
  • solid carbide ultra-fine grain
  • straight shank in accordance with DIN 6535 HB
  • centre cutting
  • with clearance
  • with edge protection chamfer
  • ULTRA-coated


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: N
Number of cutting edges (Z): 3 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 3 mm
Cutting edge length: 8 mm
Clearance length: 15 mm
Length: 57 mm
Edge protection chamfer length: 0,05 mm
Clearance diameter: 2,8 mm
Shank diameter: 6 mm
fz steel 1000: 0,01 mm
Overall stainless steel suitability: 1
fitness not iron total: 2
fitness Titan/Nickel/Super total: 2

ATORN-No.: 10910776

EAN no.: 4050293091571
