HHW SC HPC end mill INOX long Alcrona Pro HB shank Z4 dia. 3

HHW SC HPC end mill INOX long Alcrona Pro HB shank Z4 dia. 3

HHW SC HPC end mill INOX long Alcrona Pro HB shank Z4 dia. 3
Item no: 1016595 203

Online price:

Available for immediate delivery

Application
For universal roughing and finishing in stainless steels, optimum machining performance even at high cutting speeds. Also suitable for steels up to 1,100 N/mm2.

Execution
  • Unequal cutting edge pitch
  • With 45° edge protection chamfer
  • With clearance

Advantage
  • Extremely smooth running
  • Defined edge rounding for maximum service life
  • Minimal heat generation
  • Optimised geometry
  • Reinforced core diameter


Brand: LIZZARD
Material to be processed: Stainless steel | Universal use
Cutting edge diameter: 3 mm
Cutting edge length: 8 mm
Clearance length: 13 mm
Length: 57 mm
Clearance diameter: 2,8 mm
Shank diameter: 6 mm
Edge protection chamfer length: 0,05 mm
Edge protection for chamfer angle: 45 Degree
Number of cutting edges (Z): 4 PCS
Twist angle: 35-38°
Center cutting: Yes
Type: UNI
Construction length: Normal
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz stainless steel: 0,010 mm

Versions
loading
Keywords:

[Text nicht gefunden]

  • HHW SC HPC end mill INOX long Alcrona Pro HB shank Z4 dia. 4
  •
    HHW SC HPC end mill INOX long Alcrona Pro HB shank Z4 dia. 5
  •
    HHW SC HPC end mill INOX long Alcrona Pro HB shank Z4 dia. 6
    17,00 €
  • HHW SC HPC end mill INOX long Alcrona Pro HB shank Z4 dia. 12
    43,90 €
  • Balancer without automatic lock, cable extension 2000 mm, load capacity 13-17 kg
  •
    Balancer without automatic lock, cable extension 2000 mm, load capacity 16-21 kg
  •
    Balancer without automatic lock, cable extension 2000 mm, load capacity 25-35 kg
  •

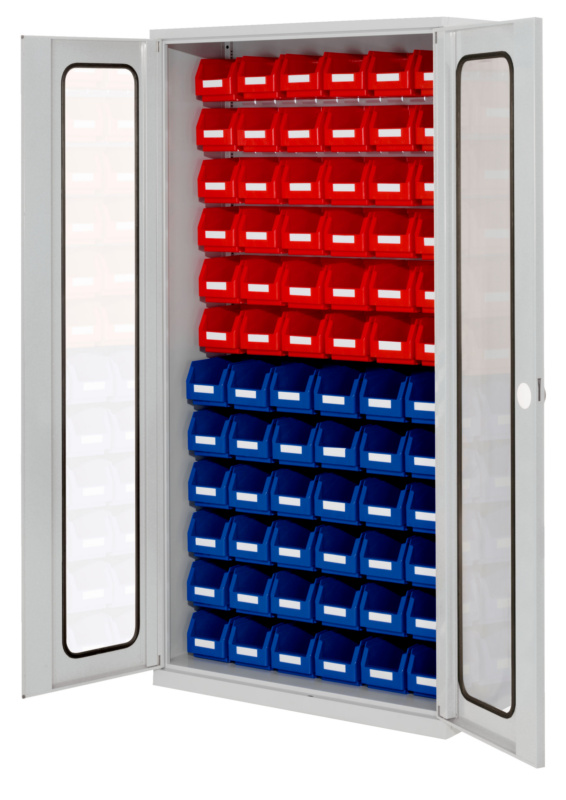

    Slotted panel cabinet w/ doors w/ viewing window, boxes: 36xsz5 36xsz6
