ATORN thread milling cutter holder, single cutter, SC size 14, 15.2 mm HA

ATORN thread milling cutter holder, single cutter, SC size 14, 15.2 mm HA

ATORN thread milling cutter holder, single cutter, SC size 14, 15.2 mm HA
Item no: 1014626 104

Online price:

Available in 4-6 working days.

Application
For using ground thread milling cutter inserts no. 13397.

Execution
Solid carbide steel tool holder with one insert seat

Advantage
  • High process reliability and dimensional accuracy due to precise insert seating
  • High quality solid carbide carrier material for very high requirements in terms of service life and low vibration


Brand: ATORN
Tool holding device: HA parallel shank
Coolant supply: Internal
Suitable for indexable insert size: 14
Cutting edge length: 14 mm

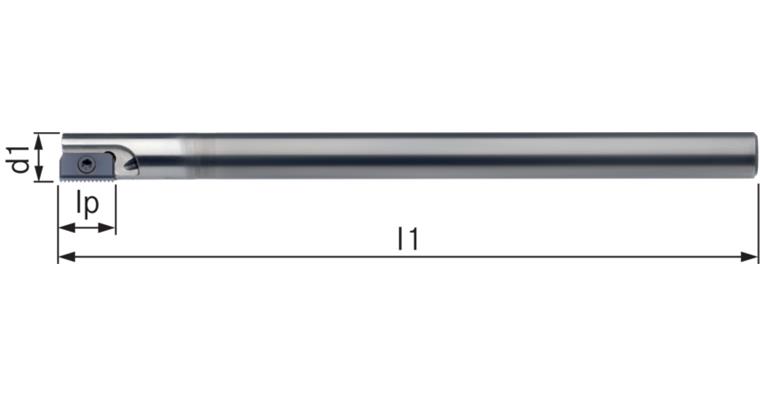

Cutting edge diameter (d1): 15,2 mm
Suitable for min. diameter: 19,7 mm
Shank diameter: 12 mm
Length (l1): 175 mm

ATORN-No.: 11940094

EAN no.: 4050293205237

Product Datasheet Datasheet cutting values
