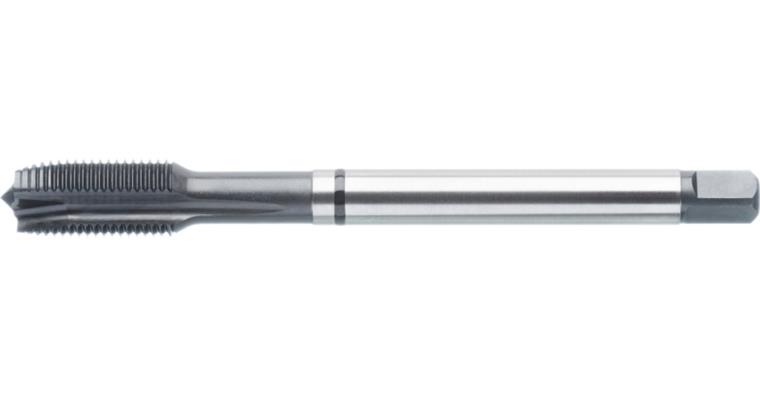

ATORN machine tap thread 1 in HSSE B vaporised for through hole

ATORN machine tap thread 1 in HSSE B vaporised for through hole

ATORN machine tap thread 1 in HSSE B vaporised for through hole
Item no: 1014593 106

Online price:

Available in 6-8 working days.

Application
For manufacturing pipe threads in through holes on CNC or conventional machines in the steel, stainless steel, NF metal and cast material groups up to a strength of 1000 N/mm².

Execution
With protruding shank

Advantage
  • Universal use for maximum flexibility of application
  • Innovative cutter geometry ensures high process reliability even in difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Pipe thread
Thread dimension: G 1 inch - 11
Thread type x nominal diameter in inches: G 1 in
Tolerance of screw taps (Tol.): ISO 2 (6H)
Number of thread starts per inch: 11
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 160 mm
Cutting material: HSSE
Surface: Vaporised
Twist angle: 0°
Shank diameter: 25 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 30,75 mm
Type: UNI 40 Control
Coolant supply: External
Shank square: 20 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290957

EAN no.: 4050293423570

Product Datasheet Datasheet cutting values
