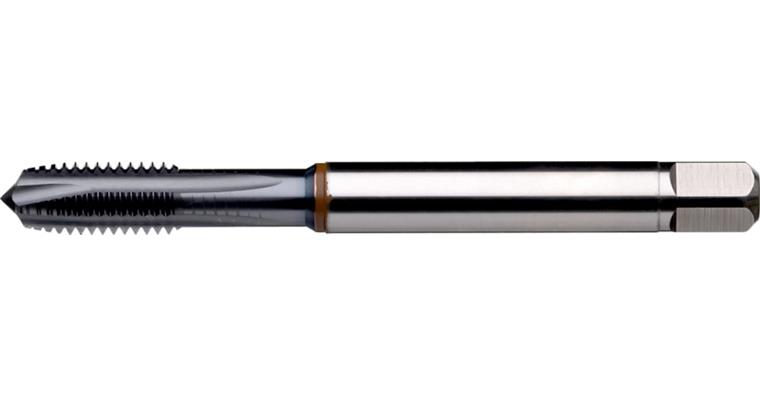

ATORN screw tap HSSE‑PM B 371 0° M2 0.4 mm ISO2 x D 3xD CNC S

ATORN screw tap HSSE‑PM B 371 0° M2 0.4 mm ISO2 x D 3xD CNC S

ATORN screw tap HSSE‑PM B 371 0° M2 0.4 mm ISO2 x D 3xD CNC S
Item no: 1014356 202

Online price:

Available for immediate delivery

Application
For producing metric threads on CNC machines or conventional machines in through holes in the titanium and nickel alloy material group up to 1000 N/mm².

Execution
Dimensions to: DIN 371 = reinforced shank (to M10), DIN 376 = protruding shank (from M12)

Advantage
Long service life and process reliability through innovative cutting geometry and coating for use in titanium-and-nickel alloys


Brand: ATORN
Material to be processed: Superalloy nickel or titan base
Thread type: Metric thread
Thread type x nominal diameter: M2
Tolerance of screw taps (Tol.): ISO 2X (6HX)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 45 mm
Cutting material: HSSE-PM
Surface: TiCN
Pitch: 0,4 mm
Twist angle: 0°
DIN: 371
Shank diameter: 2,8 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 1,6 mm
Type: S MAX Control
Coolant supply: External
Shank square: 2,1 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 2
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10470764

EAN no.: 4050293017915

Product Datasheet Datasheet cutting values
