Blind hole screw tap MF DIN 374 40° shape C 2.5xD HSS-E MF18x1.00

Blind hole screw tap MF DIN 374 40° shape C 2.5xD HSS-E MF18x1.00

Blind hole screw tap MF DIN 374 40° shape C 2.5xD HSS-E MF18x1.00
Item no: 1014502 125

Online price:

Still in stock: 3

Application
- Metric fine thread
- Blind holes
- Max. drilling depth 2.5xD
- Steels up to 800 N/mm²

Execution
  • Tolerance field 6H
  • DIN 374
  • Right-hand spiral flute approx. 40°
  • DIN chamfer shape C (2-3 turns)
  • HSS-E


Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter: MF18
Max. thread depth: 2.5xD
Thread dimension: M18
Pitch: 1 mm
Cutting material: HSSE
Surface: Uncoated
Hole type: Blind hole ≤ 2.5xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: C
Length: 110 mm
Cutting edge length: 20 mm
Core hole diameter: 17,00 mm
Shank diameter: 14 mm
Shank square: 11 mm
Thread type: Metric fine thread
Twist angle: 40° (right)
DIN: 374
Coolant supply: External
Nominal diameter: 18 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN die HSS EN 22568 MF18 x 1 6g outer diameter 45 mm
  •
    Angle cutter cyl./1835 B DIN 1833 D, a=45° 12 cutting edges HSS-E 32 mm
  •
    ATORN solid carbide roughing cutter T3 HA, 20.0 x 41 x 52 x 104 mm, coated
    233,12 €
  • ATORN SC mini torus mill cttr TiAlSiN 1x1x60 mm clearance 0.95x25 mm R 0.2 mm
  •
    ATORN SC mini torus mill cttr TiAlSiN 2x2x75 mm clearance 1.91x40 mm R 0.2 mm
  •
    ATORN SC mini torus mill cttr TiAlSiN 3x3x50 mm clearance 2.92x15 mm R 0.3 mm
  •
    ATORN SC mini torus mill cttr TiAlSiN 3x3x65 mm clearance 2.92x30 mm R 0.5 mm
  •
    Shrink-fit chuck slim DIN 69871 shape AD SK40 extra-long D10x163mm stain.steel
  •
    Shrink-fit chuck slim DIN 69893 shape E HSK40 extra-long dia. 12x144mm st. steel
    265,88 €

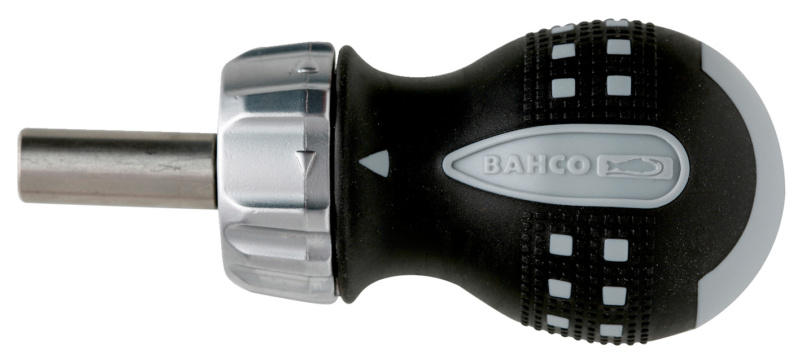

  • 1/4 in bit ratchet driver DIN 3126-C6.3 ISO 1173 clock/anticlock. rot. w. mag.
