Through hole screw tap MF DIN 374 shape B 3xD HSS-E-TiN MF12x1.00

Through hole screw tap MF DIN 374 shape B 3xD HSS-E-TiN MF12x1.00

Through hole screw tap MF DIN 374 shape B 3xD HSS-E-TiN MF12x1.00
Item no: 1014500 115

Online price:

Available in 6-8 working days.

Application
- Metric fine thread
- Through holes
- Max. drilling depth 3xD
- Steels up to 800 N/mm²

Execution
  • Spiral point tap for excellent chip transport to the front
  • Tolerance range 6H
  • DIN 374
  • DIN type B (3.5-5 chamfer threads)
  • HSSE, TiN-coated

Notes
Reduced buildup of material deposits due to TiN coating

Brand: ATORN
Material to be processed: Steel
Thread type: Metric fine thread
Thread type x nominal diameter: MF12
Tolerance of screw taps (Tol.): 6H
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 100 mm
Cutting material: HSSE
Surface: TiN
Pitch: 1 mm
Twist angle: 0°
DIN: 374
Shank diameter: 9 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 11,00 mm
Coolant supply: External
Shank square: 7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

Versions
loading
Keywords:

You might also be interested in this

  • Through hole screw tap MF DIN 374 shape B 3xD HSS-E-TiN MF24x1.50
  •
    ATORN chamfer and centring cutter set 45 degrees
  •
    Through hole screw tap MF DIN 374 shape B 3xD HSS-E-TiN MF12x1.50
  •
    Through hole screw tap MF DIN 374 shape B 3xD HSS-E-TiN MF10x1.25
  •
    1/2 inch bi-hexagon socket DIN 3124 CV steel AF 30 mm
  •

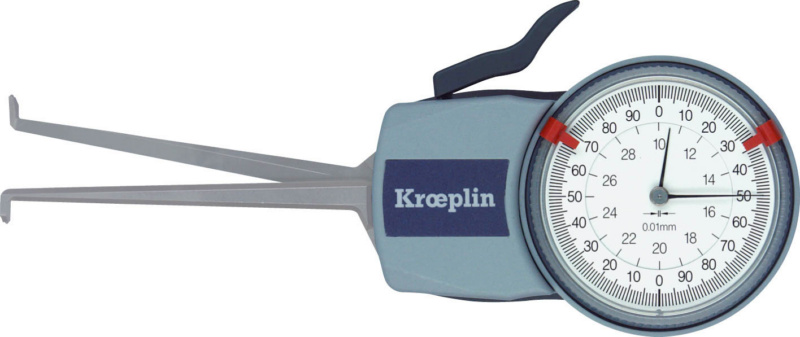

    Internal quick probe with carbide ball dia. 1.0 mm H230 MR 30-50 mm
  •
