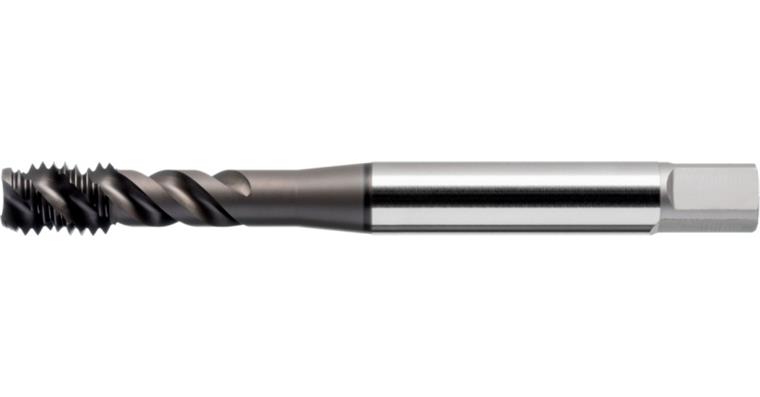

ATORN screw tap HSSE-PM HL E 50° M20 2.5 ISO2 3xD CNC UNI

ATORN screw tap HSSE-PM HL E 50° M20 2.5 ISO2 3xD CNC UNI

ATORN screw tap HSSE-PM HL E 50° M20 2.5 ISO2 3xD CNC UNI
Item no: 1014464 120

Online price:

Still in stock: 5

Application
For manufacturing metric threads in blind holes on CNC or conventional machines in the steel, stainless steel, non-ferrous metal and cast iron material groups up to -1200 N/mm²

Advantage
  • Universal application for maximum flexibility
  • Innovative cutting geometry ensures high process reliability even under difficult machining conditions
  • Short cut shape E to cut slightly above base


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M20
Tolerance of screw taps (Tol.): ISO 2X (6HX)
Hole type: Blind hole ≤ 3xD
Lead angle shape: E
Length: 140 mm
Cutting material: HSSE-PM
Surface: ULTRA HL
Pitch: 2,5 mm
Twist angle: 50° (right)
DIN: 376
Shank diameter: 16 mm
Application type/machine type: Conventional | CNC
Core hole diameter: 17,5 mm
Type: UNI MAX 45HL Speed
Coolant supply: External
Shank square: 12 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 1
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 12280235

EAN no.: 4050293437478

Product Datasheet Datasheet cutting values
