ATORN hand tap set HSSE-PM A/D/C 352 0° M6 1 mm ISO2 x D/S 3xD

ATORN hand tap set HSSE-PM A/D/C 352 0° M6 1 mm ISO2 x D/S 3xD

ATORN hand tap set HSSE-PM A/D/C 352 0° M6 1 mm ISO2 x D/S 3xD
Item no: 1014060 106

Online price:

Will be ordered for you

Application
For manually tapping metric threads in through holes and blind holes in the (steel), stainless steel, (cast) and special alloy material groups up to a strength of 1300 N/mm² in single part production.

Execution
Set consisting of taper tap (form A), second tap (form D) and third tap (form C)

Advantage
Long service life and high level of process reliability thanks to innovative cutting geometry for machining high-strength steel


Brand: ATORN
Material to be processed: Universal use
Type: UNI MAX 1300 N/mm2
Design: Set
Thread type: Metric thread
Thread type x nominal diameter: M6
Core hole diameter: 5 mm
Pitch: 1 mm
Cutting material: HSSE-PM
Surface: Nitrated
Shank square: 4,9 mm
Hole type: Clearance/blind hole ≤ 3xD
Length: 50 mm
Tolerance of screw taps: ISO 2X (6HX)
Shank diameter: 6 mm
Cutting speed (steel 1000) suitability (Eignung Stahl 1000 N/mm2): 2
Cutting speed (steel 1300) suitability (Eignung Stahl 1300 N/mm2): 1
Overall stainless steel suitability (Eignung Edelstahl ): 3
fitness not iron total (Eignung NE-Metalle): 2
Cutting speed (cast) suitability (Eignung Guss): 1
fitness Titan/Nickel/Super total (Eignung Sonderlegierung): 2
fitness stainless steel total (Eignung Hartbearbeitung): 3
DIN: 352

ATORN-No.: 10470543

EAN no.: 4050293015720

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN hand tap VS HSS A 352 0° M6 1 mm ISO2 D/S 3xD
  •
    ATORN screw tap HSSE TiN B 374 0° MF8 1 mm ISO2 D 3xD CNC UNI
  •
    ATORN stepped drill bit, short, type N, SC-TiAlN 90 degrees M8 6.8x10.0 mm HA
  •
    ATORN machine tap HSSE, 6HX, 45 degrees, form C, M5
  •
    ATORN thread mould HSSE-PM TiCN DIN 371 M6 x 1.0 mm ISO 2 3xD, external
  •
    Maschinen-Gewindebohrer Enorm 2-Z/E-X-PM-GLT-1 5/8-11 UNC-2BX
  •
    WS steel jigsaw blade for wood pack=5 pcs effective length 50 mm 18 tpi
  •

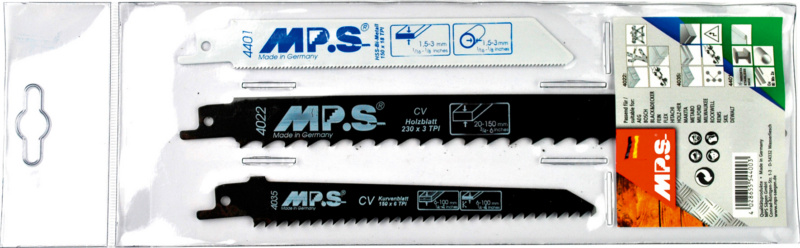

    Sabre saw blade assortment 3 pieces for metal/wood
  •
