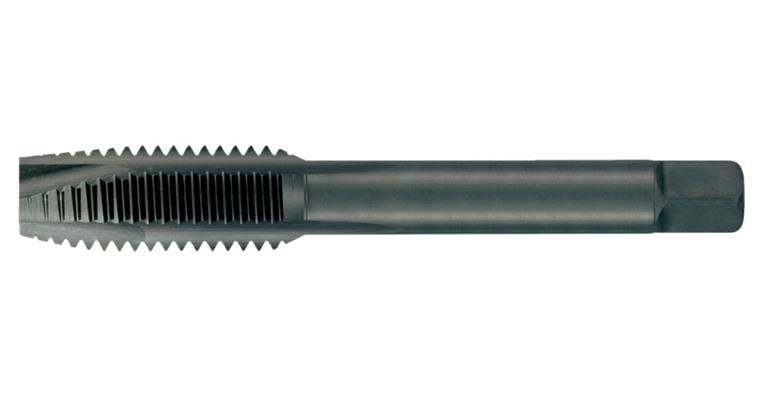

Through hole screw tap Hyper Z Series DIN 371 shape B 2xD HSS-E M 4

Through hole screw tap Hyper Z Series DIN 371 shape B 2xD HSS-E M 4

Through hole screw tap Hyper Z Series DIN 371 shape B 2xD HSS-E M 4
Item no: 1014343 006

Online price:

Available in 6-8 working days.

Application
For steels up to 1200 N/mm2.

Execution
  • Metric thread
  • Through-hole thread
  • Right-cutting with spiral point
  • DIN 371
  • HSS-E

Notes
UNI high-performance screw taps with optimal cutting geometry, long service life and process reliability!

Brand: NACHI
Material to be processed: Copper | Steel | Aluminium | Cast metal | Thermoset plastic
Thread type x nominal diameter: M4
Max. thread depth: 2xD
Pitch: 0,7 mm
Cutting material: HSSE
Surface: Vaporised
Hole type: Clearance hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 63 mm
Cutting edge length: 12,5 mm
Core hole diameter: 3,30 mm
Shank diameter: 4,5 mm
Shank square: 3,4 mm
Thread type: Metric thread
Type: Hyper Z
Twist angle: 0°
DIN: 371
Nominal diameter: 4 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Manufacturer part no.: L6864 M4

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE C 376 40° M12 1.75 mm ISO2 S 2.5xD CNC P
  •
    Short VA twist drill bit DIN 338 type IS HSS-E, ground 1.4 mm
  •
    Short VA twist drill bit DIN 338 type IS HSS-E, ground 2.6 mm
  •
    Short VA twist drill bit DIN 338 type IS HSS-E, ground 6.2 mm
  •
    NC spotting drill, solid carbide, 90° TiAlSiN, diameter 8 mm x 79 mm HB shaft
  •
    Slabbing cut drill reamer HSS-E size 6 for bore dia. 46–60 mm
  •
    Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-TiN for VA steels M8
  •
    ATORN machine tap HSSE HL, 6H+0.1, 0 degrees, form B, M2.5
  •
    Machine thread former M DIN 371 shape C 2xD SC-TiAlN+C h6 shank M6
    135,83 €
  • ATORN screw tap HSSE-PM HL E 50° M6 1 ISO2 3xD CNC UNI
  •
    Digital workshop callipers 0-200 mm with blade tips and data output
  •

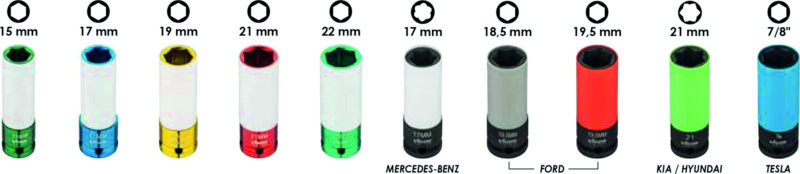

    Schlagschrauber Steckschlüssel-Satz V6312/10 10-teilig
