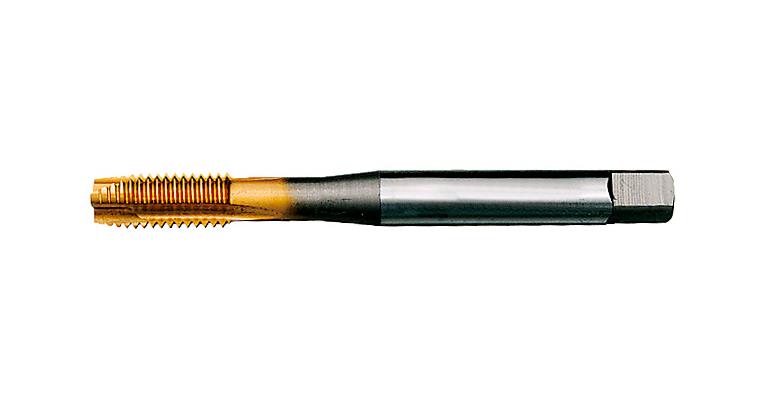

Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-TiN for VA steels M8

Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-TiN for VA steels M8

Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-TiN for VA steels M8
Item no: 1014319 105

Online price:

Available for immediate delivery

Application
- Metric thread
- Through holes
- Max. drilling depth 1.5xD
- VA steels up to 1,200 N/mm²

Execution
  • Spiral point
  • Improved wear characteristics thanks to TiN coating
  • Tolerance field 6H
  • DIN 371
  • HSS-E TiN


Brand: LIZZARD
Material to be processed: Stainless steel
Thread type x nominal diameter: M8
Max. thread depth: 1.5xD
Thread dimension: M8
Pitch: 1,25 mm
Cutting material: HSSE
Surface: TiN
Hole type: Clearance hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 90 mm
Cutting edge length: 22 mm
Core hole diameter: 6,80 mm
Shank diameter: 8 mm
Shank square: 6,2 mm
Thread type: Metric thread
Twist angle: 0°
DIN: 371
Coolant supply: External
Nominal diameter: 8 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting
