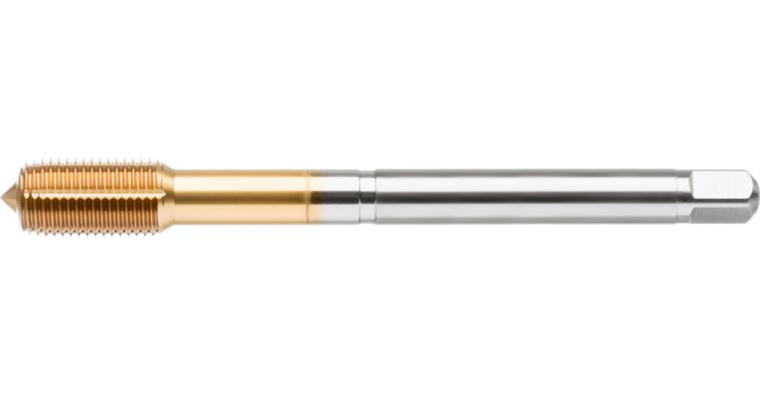

ATORN thread mould HSSE TiN DIN 374 MF12 x 1.25 mm ISO 2 3xD

ATORN thread mould HSSE TiN DIN 374 MF12 x 1.25 mm ISO 2 3xD

ATORN thread mould HSSE TiN DIN 374 MF12 x 1.25 mm ISO 2 3xD
Item no: 1003141 536

Online price:

Available in 4-6 working days.

Application
For producing metric threads in through holes and blind holes on CNC and conventional machines in the steel, stainless steel and NF metal material groups up to a strength of 1300 N/mm² with > 10% material expansion.

Advantage
  • Innovative mould geometry ensures very high dimensional accuracy and process reliability
  • High-quality, torsion-resistant HSSE cutting material and surface finish for very high service life requirements


Brand: ATORN
Material to be processed: Universal use
Surface: TiN
Lead angle shape: C
Thread type: Metric fine thread
Thread type x nominal diameter: MF12
Pitch: 1,25 mm
Cutting material: HSSE
Core hole diameter: 11,4 mm
Length: 100 mm
Hole type: Clearance/blind hole ≤ 3xD
Shank diameter: 9 mm
Shank square: 7 mm
Coolant supply: External
Tolerance of screw taps: ISO 2X (6HX)
Application type/machine type: CNC | Conventional
Cutting speed (steel 1000) suitability (P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (P 1300 N/mm²): 1
Overall stainless steel suitability (M): 1
fitness not iron total (N): 2
Cutting speed (cast) suitability (K): 3
fitness Titan/Nickel/Super total (S): 3
Cutting speed (hard 65) suitability (H 65HRC): 3
DIN: 374

ATORN-No.: 10483224

EAN no.: 4050293583045

Product Datasheet Datasheet cutting values
