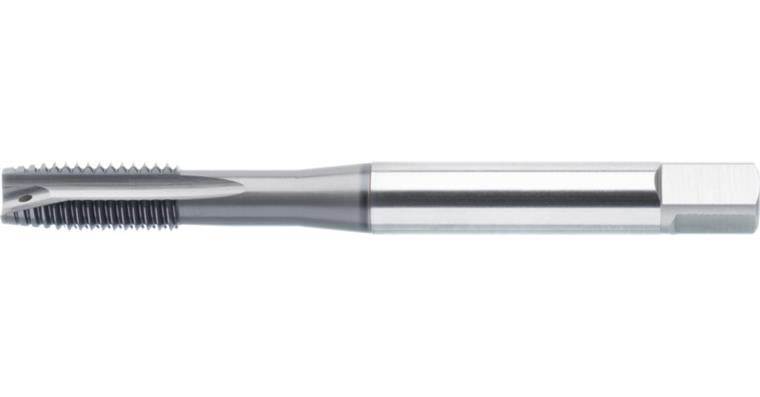

ATORN screw tap HSSE-PM ULTRA HL B 376 0° M20 2.5 ISO2 3xD CNC

ATORN screw tap HSSE-PM ULTRA HL B 376 0° M20 2.5 ISO2 3xD CNC

ATORN screw tap HSSE-PM ULTRA HL B 376 0° M20 2.5 ISO2 3xD CNC
Item no: 1014348 109

Online price:

Still in stock: 5

Application
For producing metric threads on CNC machines or conventional machines in through holes in the steel, stainless steel, non-ferrous metals, cast and special alloys material groups up to a strength of 1200 N/mm².

Advantage
  • Universal use for maximum flexibility of application
  • Innovative cutter geometry ensures high process reliability even in difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M20
Tolerance of screw taps (Tol.): ISO 2X (6HX)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 140 mm
Cutting material: HSSE-PM
Surface: ULTRA HL
Pitch: 2,5 mm
Twist angle: 0°
DIN: 376
Shank diameter: 16 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 17,5 mm
Type: UNI MAX 45HL Speed
Coolant supply: Internal
Shank square: 12 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 1
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 12280021

EAN no.: 4050293424553

Product Datasheet Datasheet cutting values
