ATORN screw tap HSSE C 376 15° M16 2 mm ISO2 S 2.5xD CNC P

ATORN screw tap HSSE C 376 15° M16 2 mm ISO2 S 2.5xD CNC P

ATORN screw tap HSSE C 376 15° M16 2 mm ISO2 S 2.5xD CNC P
Item no: 1003141 104

Online price:

Available in 4-6 working days.

Application
For producing metric threads on CNC machines or conventional machines in blind holes in the steel, (stainless steel), non-ferrous metals and (cast iron) material groups up to a strength of 1000 N/mm².

Execution
structural dimensions in accordance with: DIN 371 = reinforced shank (up to M10), DIN 376 = over-long shank (from M12)

Advantage
  • good service life and process reliability thanks to innovative cutting geometry and universal use for the greatest flexibility in applications
  • optimised geometry for lathes as stationary tool


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M16
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 110 mm
Cutting material: HSSE
Surface: Uncoated
Pitch: 2 mm
Twist angle: 15° (right)
DIN: 376
Shank diameter: 12 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 14 mm
Type: P MAX 1000
Coolant supply: External
Shank square: 9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 2
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10479503

EAN no.: 4050293190168

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

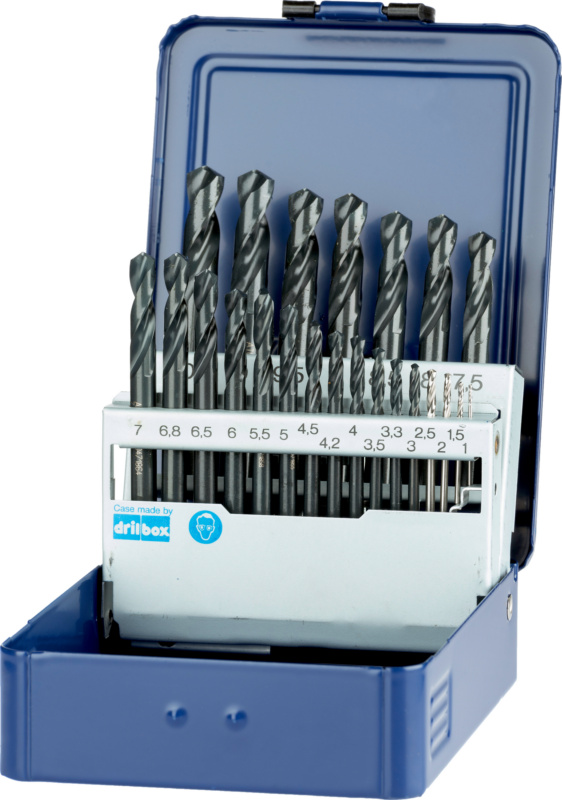

  • ATORN twist drill bit set N HSS DIN 1897 1.0-10.2 mm 0.5 in box
