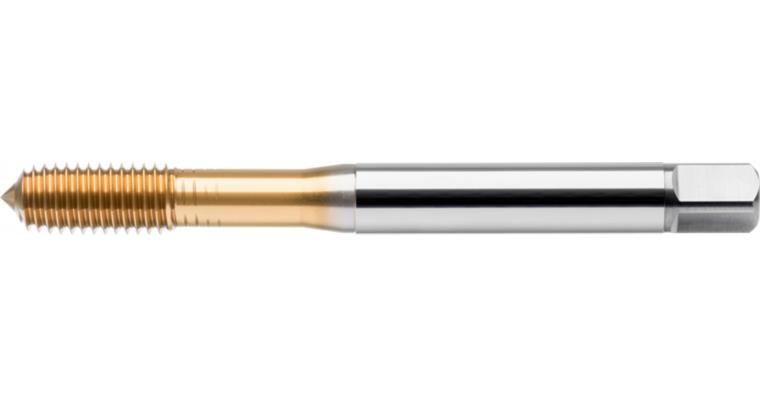

ATORN thread mould HSSE TIN DIN 371 M6 x 1.0 mm ISO 3 1xD

ATORN thread mould HSSE TIN DIN 371 M6 x 1.0 mm ISO 3 1xD

ATORN thread mould HSSE TIN DIN 371 M6 x 1.0 mm ISO 3 1xD
Item no: 1003141 523

Online price:

Available in 4-6 working days.

Application
For producing metric threads in through holes and blind holes on CNC and conventional machines in the steel, stainless steel and NF metal material groups up to a strength of 1300 N/mm² with > 10% material expansion.

Execution
Without lubrication grooves, structural dimensions according to: DIN 371 = reinforced shank (up to M10), DIN 376 = protruding shank (from M12)

Advantage
Innovative mould geometry ensures very high dimensional accuracy and process reliability


Brand: ATORN
Material to be processed: Universal use
Surface: TiN
Lead angle shape: C
Thread type: Metric thread
Thread type x nominal diameter: M6
Pitch: 1 mm
Cutting material: HSSE
Core hole diameter: 5,55 mm
Length: 80 mm
Hole type: Clearance/blind hole ≤ 1xD
Shank diameter: 6 mm
Shank square: 4,9 mm
Coolant supply: External
Tolerance of screw taps: ISO 3 (6G)
Application type/machine type: CNC | Conventional
Cutting speed (steel 1000) suitability (P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (P 1300 N/mm²): 1
Overall stainless steel suitability (M): 1
fitness not iron total (N): 2
Cutting speed (cast) suitability (K): 3
fitness Titan/Nickel/Super total (S): 3
Cutting speed (hard 65) suitability (H 65HRC): 3
DIN: 371 similar

ATORN-No.: 10483186

EAN no.: 4050293582666

Product Datasheet Datasheet cutting values
