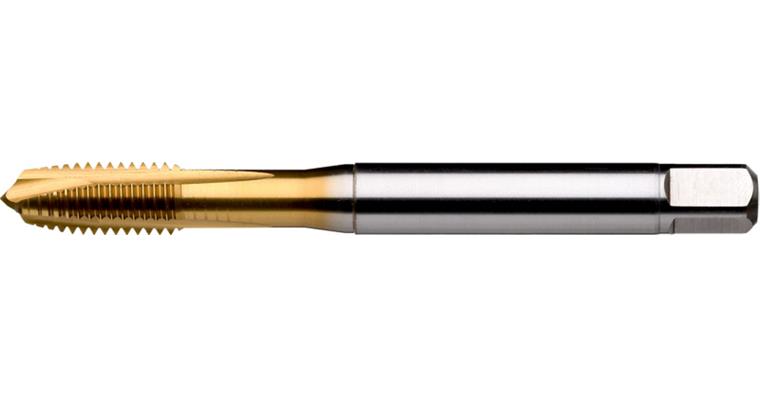

ATORN screw tap HSSE B 371 0° M10 1.5 mm ISO2 3xD

ATORN screw tap HSSE B 371 0° M10 1.5 mm ISO2 3xD

ATORN screw tap HSSE B 371 0° M10 1.5 mm ISO2 3xD
Item no: 1003140 900

Online price:

Available in 4-6 working days.

Application
For producing metric threads on CNC machines or conventional machines in through holes in the steel, (stainless steel), non-ferrous metals and cast iron material groups up to a strength of 1300 N/mm².

Execution
structural dimensions in accordance with: DIN 371 = reinforced shank (up to M10), DIN 376 = over-long shank (from M12)

Advantage
good service life and process reliability thanks to innovative cutting geometry and universal use for the greatest flexibility in applications


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M10
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 100 mm
Cutting material: HSSE
Surface: TiN
Pitch: 1,5 mm
Twist angle: 0°
DIN: 371
Shank diameter: 10 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 8,5 mm
Type: UNI 40 Control
Coolant supply: External
Shank square: 8 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 2
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10479595

EAN no.: 4050293189377

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN thread mould SC TiALN DIN 376 M12 x 1.75 mm ISO 2 3xD
  •
    ATORN thread mould HSSE TiN DIN 374 MF8 x 0.75 mm ISO 2 3xD
  •
    ATORN thread mould HSSE TiN DIN 374 MF10 x 1.25 mm ISO 2 3xD
  •
    ATORN thread mould HSSE TiN DIN 374 MF14 x 1.5 mm ISO 2 3xD
  •
    ATORN machine tap HSSE HL, 6HX, 45 degrees, form C, long, M5
  •
    ATORN thread mould HSSE Carbo DIN 371 M8 x 1.25 mm ISO 2 1xD
    79,98 €
  • ATORN thread mould HSSE Carbo DIN 371 M10 x 1.5 mm ISO 2 1xD
  •
    ATORN screw tap HSSE-PM TiN B 371 50° M5 ISO2 S 2.5xD CNC UNI
    24,95 €
  • ATORN screw tap HSSE V3 vap. C 40° M2.5 0.45 ISO2 3xD CNC UNI
    22,64 €
  • Blind hole screw tap G DIN 5156 40° shape C 2.5xD HSS-E 3/8 inch
  •
    Blind hole screw tap G DIN 5156 40° shape C 2.5xD HSS-E 3/4 inch
  •

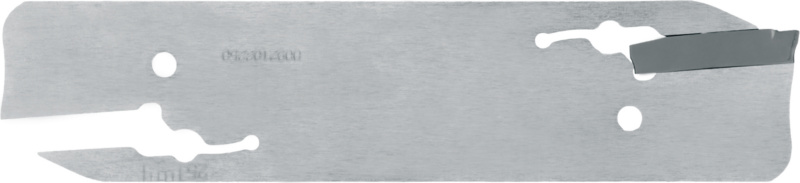

    ATORN recessing blade ABE-R 32-ADE02
