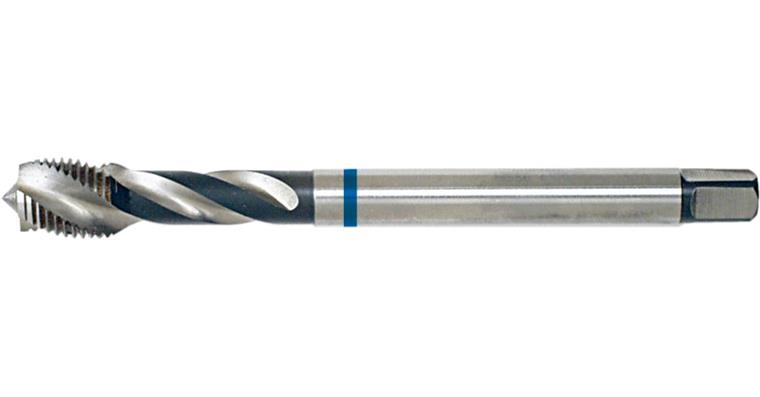

Blind hole screw tap G DIN 5156 40° shape C 2.5xD HSS-E 3/4 inch

Blind hole screw tap G DIN 5156 40° shape C 2.5xD HSS-E 3/4 inch

Blind hole screw tap G DIN 5156 40° shape C 2.5xD HSS-E 3/4 inch
Item no: 1014599 106

Online price:

Still in stock: 4

Application
- DIN 5156
- Blind holes
- Max. drilling depth 2.5xD
- Steels up to 800 N/mm²

Execution
  • Right-hand spiral grooves approx. 40°
  • DIN type C (2-3 chamfer threads)


Brand: ATORN
Material to be processed: Steel
Thread type: Pipe thread
Thread dimension: G 3/4 inch - 14
Hole type: Clearance/blind hole ≤ 2.5xD
Lead angle shape: C
Length: 140 mm
Cutting material: HSSE
Surface: Uncoated
Twist angle: 40° (right)
DIN: 5156
Shank diameter: 20 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 24,50 mm
Coolant supply: External
Shank square: 16 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3
