Autom. welding filter Speedglass™ 100 V field of view width x height 93x44 mm

Autom. welding filter Speedglass™ 100 V field of view width x height 93x44 mm

Autom. welding filter Speedglass™ 100 V field of view width x height 93x44 mm
Item no: 1093009 628

Online price:

Still in stock: 2

Application
The anti-glare technology is suitable for most types of arc welding process, including shielded metal arc, MIG/MAG and TIG welding.

Execution
  • 3M™ Speedglas™ 100 V automatic welding filter with five selectable blackness values 8-12
  • Three sensitivity levels for optimum adaptation to different welding conditions
  • Delay function allows the brightening delay to be adjusted as desired
  • Switching time light/dark 0.1 ms (+23°C)
  • Brightening time dark-light 40–250 ms
  • Light level 3
  • Viewing window size 44 x 93 mm
  • Battery life of up to 1500 hours
  • Tested in accordance with EN 379, EN 175B

Notes
Suitable for 3M™ Speedglas™ 100 welding mask.

Brand: 3M SPEEDGLAS
EN standard: 379 | 166 | 169
UV and IR protection: Protection level 12 (permanent)
Width of field of vision x height of field of vision: 93 x 44 mm
Min./max. dark-to-light switching time: 40-250 ms
Light-to-dark switching time: 0,1 ms
Translucency when activated: Protection level 8-12
Translucency when not activated: Protection level 3
Energy supply: 2 replaceable 3 V button cells (CR2032)

Manufacturer part no.: 7100167242

EAN no.: 4046719712922

Product Datasheet
Additional articles

Please select a button.

Accessories Required accessories
Keywords:

[Text nicht gefunden]

  • Carbide bent lathe chisel DIN 4972/ISO2 right setting angle 45° P30 25 Q
  •
    Milling cutter holder DIN 69871 AD/B SK40 for milling shank diameter 20 A=63 mm
  •
    Measuring tool set digital 8 pieces in OPT-I-STORE insert 260x345x30mm
  •
    Universal magnetic storage set 3 pcs each 1x (WxD) 150x120, 210x120, 310x120 mm
  •

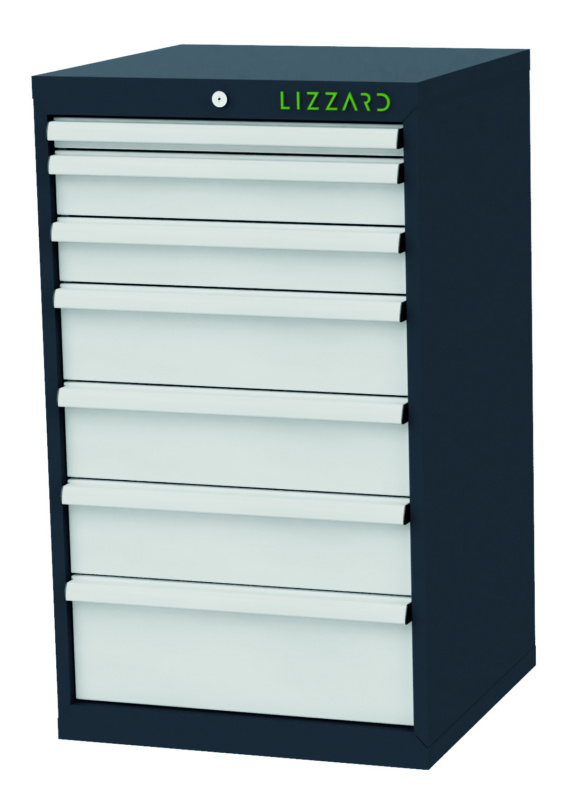

    LIZZARD Schubladenschrank 7 Schubladen B600xT575xH1020mm RAL7016/7035
  •

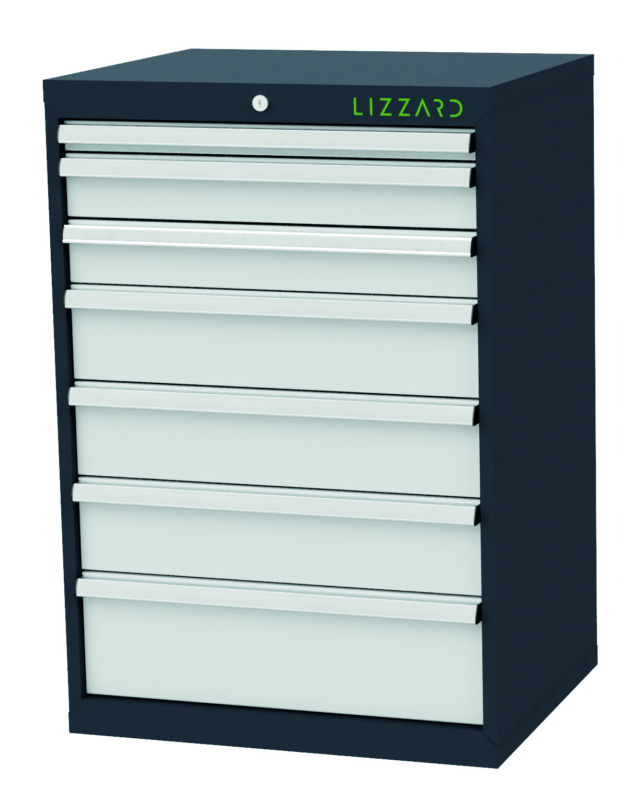

    LIZZARD Schubladenschrank 7 Schubladen B700xT575xH1020mm RAL7016/7035
  •

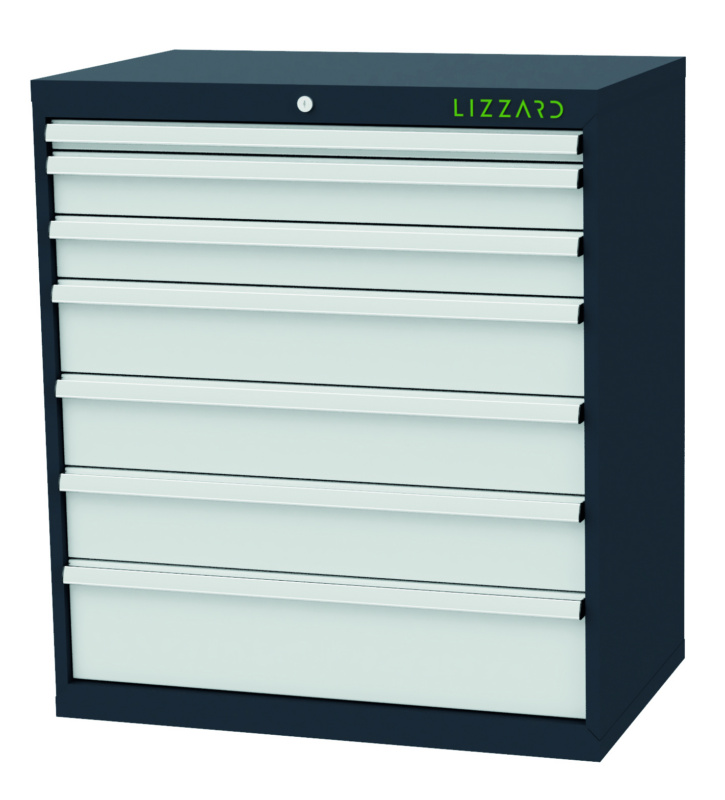

    LIZZARD Schubladenschrank 7 Schubladen B900xT575xH1020mm RAL7016/7035
  •
