3M™ Adflo™ powered air respirator sys. w. weld. mask G5-01 incl. filter G5-01VC

3M™ Adflo™ powered air respirator sys. w. weld. mask G5-01 incl. filter G5-01VC

3M™ Adflo™ powered air respirator sys. w. weld. mask G5-01 incl. filter G5-01VC
Item no: 1093009 586

Online price:

Still in stock: 1

Application
Manual metal arc welding (electrode), MIG/MAG TIG (>20A), TIG (1A-20A), plasma (welding and cutting)

Execution

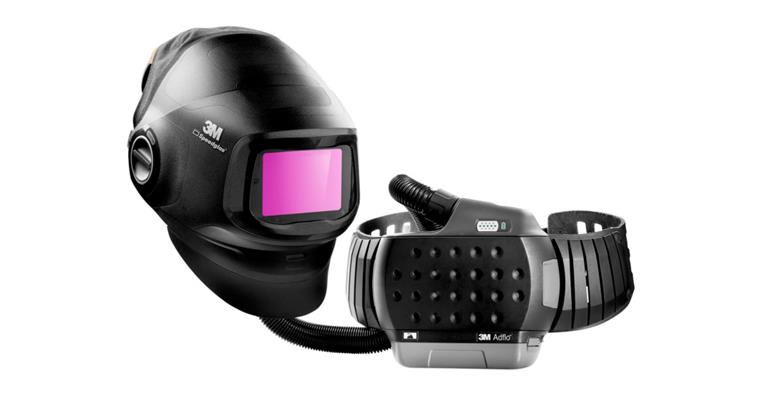

  • 3M™ Adflo™ powered air respirator system with G5-01 high-performance welding mask and G5-01VC (Variable Colour) welding filter
  • With fold-up welding protection shield for a wide, transparent field of vision during sanding and setup work
  • The new air duct system of the G5-01 welding mask offers three options for individual adjustment of the air flow
  • The improved optics ensure enhanced colour recognition with the G5-01VC (Variable Colour) welding filter (73×109 mm) using Natural Colour Technology and, in addition, three different colour options can be selected for the blackness value when welding: natural, cold or warm tones.
  • With this function, the shade cartridge can be individually adjusted to different welding procedures, materials and lighting conditions. Contours and contrasts are recognised better and the eyes are put under less strain
  • The large (104×170 mm) transparent visor is curved and provides an excellent view upwards, downwards and to the sides
  • With additional modes for grinding and cutting work
  • The 3M™ Adflo™ powered air respirator system provides highly effective breathing protection where the requirement for such is significant
  • Protection level TH3 in combination with Speedglas™ G5-01
  • Approx. 13 hours operating time of the high-performance battery, 6.5 hours charging time, constant air flow of 170 litres/min, boost mode to 200 litres/min in hot and damp environments


Brand: 3M SPEEDGLAS
EN standard: 166 | 175 | 379 | 12941 | 14594
UV and IR protection: Protection level 14 (permanent)
Width of field of vision x height of field of vision: 109 x 73 mm
Min./max. dark-to-light switching time: 50-1300 ms
Light-to-dark switching time: 0,1 ms
Translucency when activated: Protection level 5 | Protection level 8-14
Translucency when not activated: Protection level 3
Energy supply: Lithium 3V
Colour: Silver | Black
Weight: 6,10 kg

Manufacturer part no.: 7100257943

Product Datasheet
